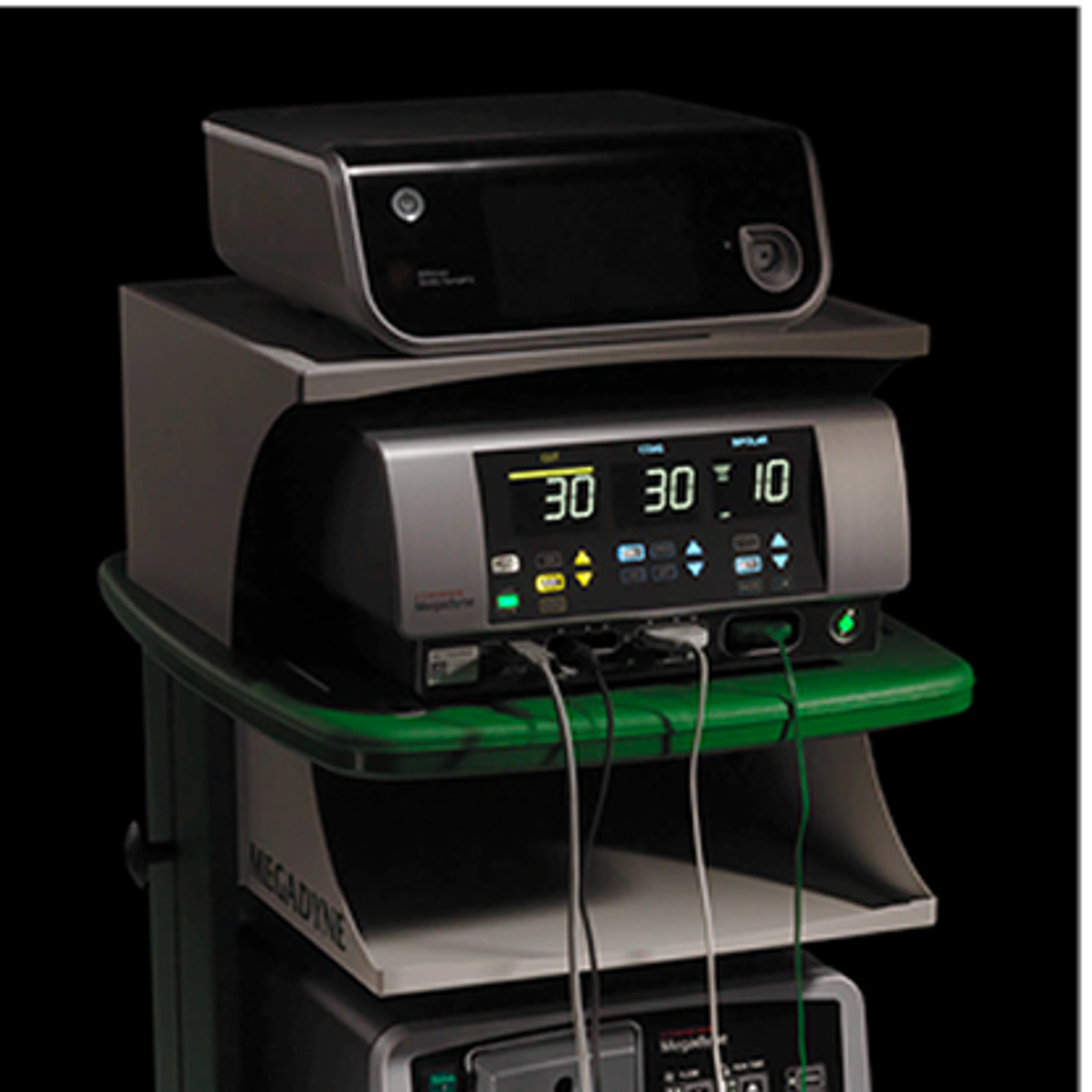

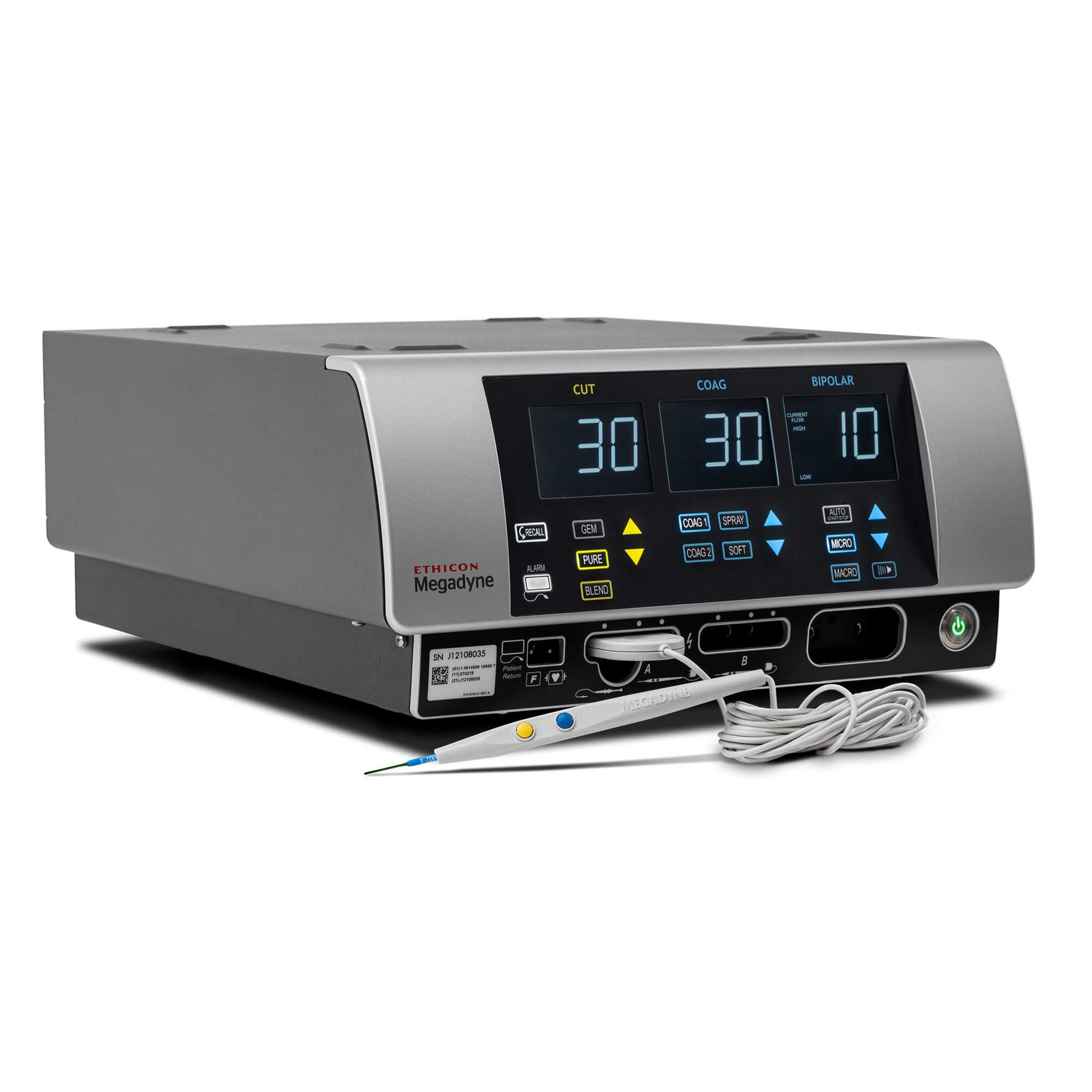

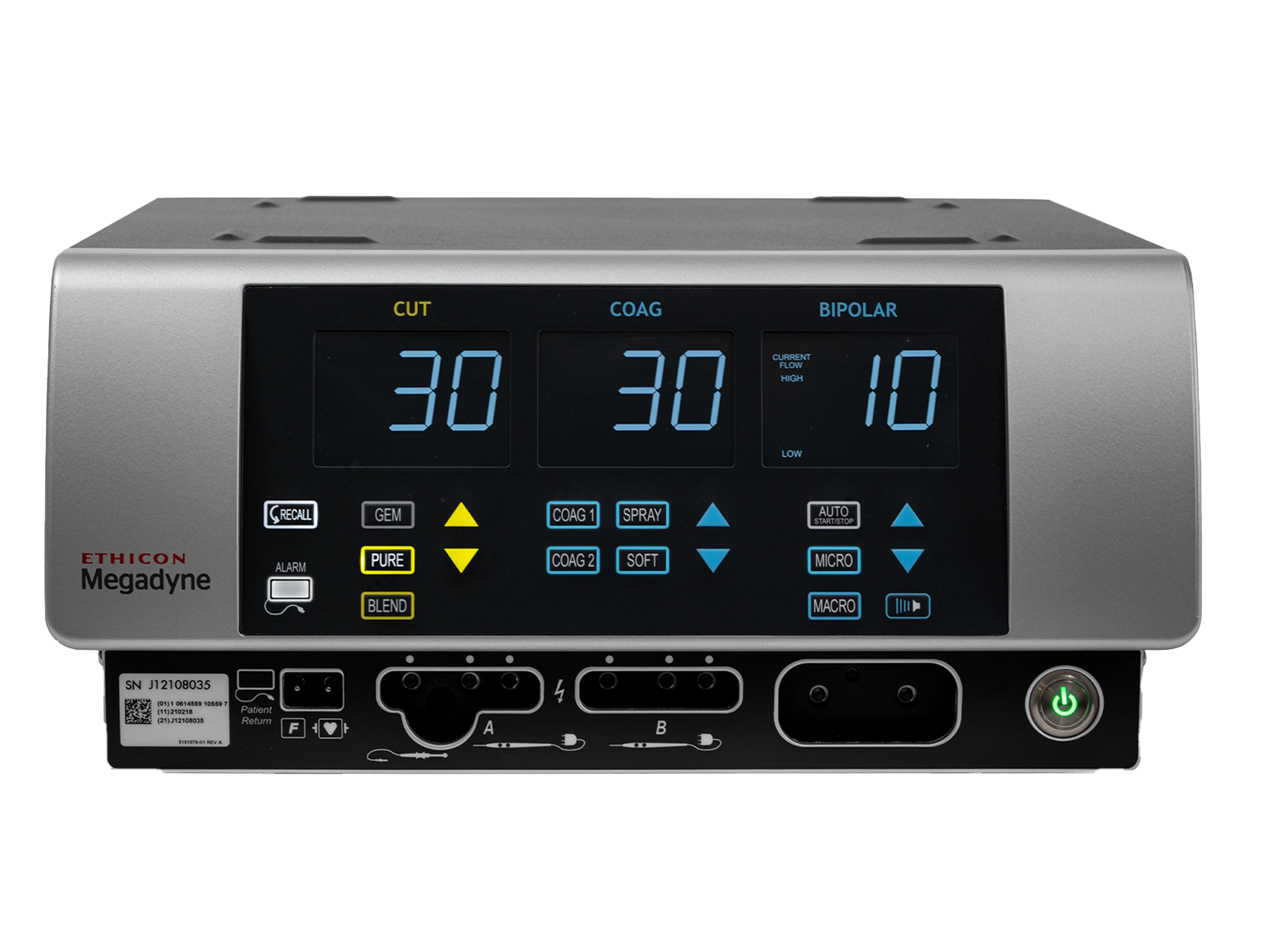

The MEGADYNE™ Electrosurgical Generator (ESU) is intended as a general-purpose electrosurgical generator designed to produce radio frequency (RF) current for cutting and coagulation to be delivered to target tissue through an accessory electrode during open and laparoscopic surgical procedures.
Select Competitive Products: Valleylab™ FT10 Energy Platform
Featured Product |
||
|
|
|
MEGADYNE™ Electrosurgical Generator |
Not Applicable |
|
|---|---|---|
Codes |
MEGEN1
|
—
|
Compatible With |
0800, 0830, 0835, 0840, 0845, 0846, 0847, 0848, M2K01, M2K02, 0009, 0012, 0012A, 0012M, 0012MD, 0012AM, 0012AMD, 0012AMP, 0012AP, 0013, 0013M, 0013MD, 0113, 0113M, 0113A, 0014, 0014A, 0014M, 0014MD, 0014AM, 0014AMD, 0014AMP, 0014AP, 0015, 0016, 0016A, 0016AM, 0016M, 0118, 0118A, 0119, 0119A, 0120, 0121, 0028, 0028M, 0029M, 0312, 0312A, 0312M, 0312AM, 0313, 0313M, 0314, 0314A, 0314M, 0315, 0316, 0316A, 0316AM, 0316M, 0300, 0030, 0030H, 0030L, 0030HL, 0035, 0035H, 0035L, 0035HL, 0036, 0036H, 0037, 0037H, 0038, 0038H, 0039, 0039H, FC39H, ME7251T, ME725M1T, 252510, 252510EC, ME7251C, ME7251E, ME725M1C, ME725M1E, 251010J, ME7251ST, ME725M1ST, 0410, 0420, 0430, 0440, 0450, 0460, 0470, 0480, 0490, 0075, 96007, 0017, 0018, 0018C, 0018CS, 0019, 0019L, 0019S, 0019LS, 0020, 0020L, 0020S, 0020LS, 0021, 0021L, 0021S, 0021LS, 0022, 0022S, 0024, 0026S, 0100, 0100L, 0100S, 0100LS, 0105S, 0690, 0690S, 0695, 0695S, 0600, 0600M, 0605, 0618, 0619, 0620, 0620M, 0621, 0621M, 004010J, 004025, 004125, 004225, 004325, 4005J, 4010J, 4020J, 4030J, 4040J, 4050J, 4060J, 0055, 0060, 0062, 0063, 0064, 0066, 0080, 0080J, 0085, EPH02, EPH04, EPS01, EPS02, EPS03, EPS04, EPS05, EPS06, EPS07 |
— |
Description |
Electrosurgical generator |
— |
Modality |
Bipolar, Monopolar |
— |
Dimensions |
14.5” x 17.3” x 7.1” |
— |
Weight |
17lbs |
— |
Type and Rating of Fuses |
2 each F10.0/250VAC, Schurter Inc. Type FSF |
— |
Class of Protection Against Electrical Shock |
Class I |
— |
Degree of Protection Against Electrical Shock |
CF |
— |
Ingress Protection |
UL 60601-1, IEC 60601-2-2 |
— |
Main Input |
100–240V, 50/60Hz |
— |
Device Technology |
Soft Coag, Auto Bipolar, and GEM modes |
— |
Surgical Approach |
Open & Laparoscopic |
— |
Qty./Box |
1 |
— |
