Device Specifications and Comparisons

MEGADYNE MEGA SOFT Patient Return Electrodes are designed to be used whenever monopolar electrosurgery is indicated. The intended use of this device is to conduct monopolar electrosurgical energy from target tissue in a patient back to one or two electrosurgical units (ESU), or generators.

Select Competitive Products: No direct competitive comparison

Featured Product

MEGADYNE MEGA SOFT Patient Return Electrodes MEGADYNE™ Disposable Patient Return Electrodes

MEGADYNE MEGA SOFT Universal Plus Reusable Patient Return Electrode

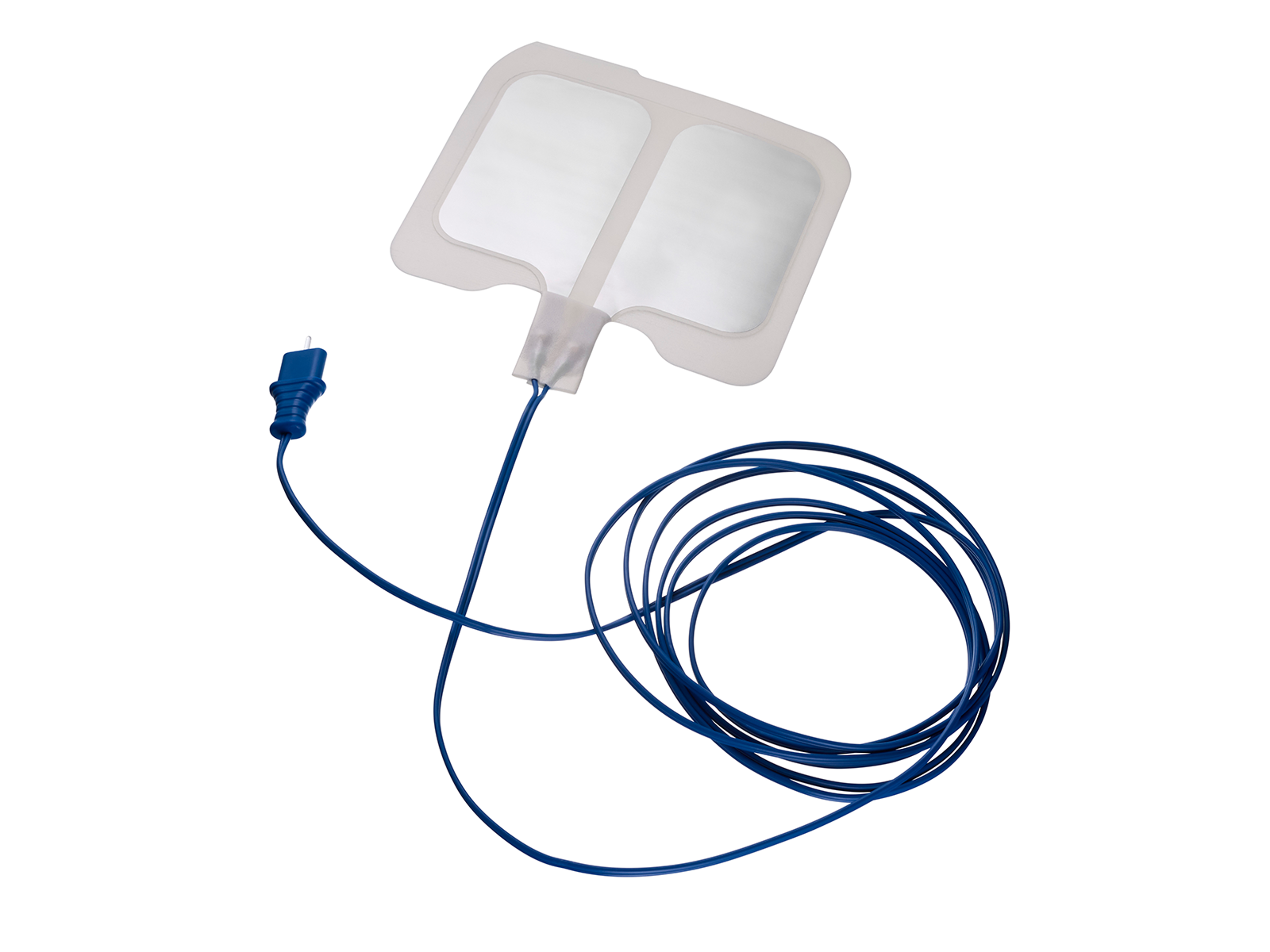

MEGADYNE Disposable Patient Return Electrodes

Codes

0845M2K01, 0845M2K02, 0845M2K03, 0845M2K04, 0845M2K05, 0845M2K06, 0845M2K08, 0845M2K09, 0846M2K01, 0846M2K02, 0846M2K03, 0846M2K04, 0846M2K05, 0846M2K06, 0846M2K08, 0846M2K09, 0848M2K01, 0848M2K02, 0848M2K03, 0848M2K04, 0848M2K05, 0848M2K06, 0848M2K08, 0848M2K09, 0847M2K01, 0847M2K02, 0847M2K03, 0847M2K04, 0847M2K05, 0847M2K06, 0847M2K08, 0847M2K09
0855C, 0855CL, 0865C

Compatible With

  • MEGEN1
  • MEGEN1

Accessories Included

  • M2K01: Standard Connect Cable, 8ft
  • M2K01: Standard Connect Cable, 14.4ft
  • M2K03: Phone Plug Connect Cable, same as B-205 adaptror, 8ft
  • M2K04: Phone Plug Connect Cable, same as B-205 adaptror, 14.4ft
  • M2K05: Extended Phone Plug Connect Cable, same as B-210 adaptror, 14.4ft
  • M2K06: Argon Beam Connector Cable, same as A-238 adaptror, 8ft
  • M2K07: Replacement Pigtail Cable, 2ft
  • M2K08: Compatibility Cable, 8ft
  • M2K09: Compatibility Cable, 14.4ft
  • PKIT001: MEGA SOFT repair kit

Cord Length

  • 8’ (M2K01, M2K03, M2K06, M2K08)
  • 14.4’ (M2K02, M2K04, M2K05, M2K09)
  • Pediatric Dual Plate Return Electrode (0865C): 9ft, 2.7m
  • Dual Plate Return Electrode (0855C): 10ft, 3.0m
  • Dual Plate Return Electrode (0855CL): 15ft, 4.6m

Description

24-month Reusable Patient Return Electrode available in single or dual cord configurations.

  • Traditional dual plate disposable patient return electrodes with pre-attached cords available in a variety of sizes for pediatric and adult patients.

Weight Range

MEGA SOFT Reusable Patient Return Electrodes are indicated for patients 12 years of age and older, with no maximum weight restriction.

  • Pediatric Dual Plate Return Electrode (0865C): 6-33lbs, 2.7-15kgs
  • Dual Plate Return Electrode (0855C & 0855CL): >33lbs, >15kgs

Pad Size ( L x W)

  • MEGA SOFT Universal (0845) & Universal Dual (0846) Reusable Patient Return Electrode:  36" X 20"
  • MEGA SOFT Universal Plus (0847) & Universal Plus Dual (0848) Reusable Patient Return Electrode:  36" X 20"

Pad Thickness

  • MEGA SOFT Universal (0845) & Universal Dual (0846) Reusable Patient Return Electrode:  1/8"
  • MEGA SOFT Universal Plus (0847) & Universal Plus Dual (0848) Reusable Patient Return Electrode:  1/4"

Pad Weight

  • MEGA SOFT Universal (0845) & Universal Dual (0846) Reusable Patient Return Electrode: 4lbs, 1.8kgs
  • MEGA SOFT Universal Plus (0847) & Universal Plus Dual (0848) Reusable Patient Return Electrode:  8lbs, 3.6kgs

Pad Use

  • Reusable
  • Single-Use, Disposable

Patient Indication

  • 12 years of age and older
  • Pediatric Dual Plate Return Electrode (0865C): 6-33lbs, 2.7-15kgs
  • Dual Plate Return Electrode (0855C & 0855CL): >33lbs, >15kgs

Max Life

  • 24 months

Modality

  • Monopolar
  • Monopolar

Surgical Approach

  • Open & Laparoscopic
  • Open & Laparoscopic

Qty./Box

  • 1 electrode + 1 or 2 cables (single vs. dual plug)
  • 50
