Hardware
CARTO™ 3 System Version 8 advances the CARTO™ mapping capabilities by bringing advanced tools for physicians across a range of procedures.1,2
Through enhanced signal analysis, improved substrate characterization and utilization of ultrasound technology, Version 8 provides the tools to support efficient EP procedures and drive reproducible results.1,2
Enabling power

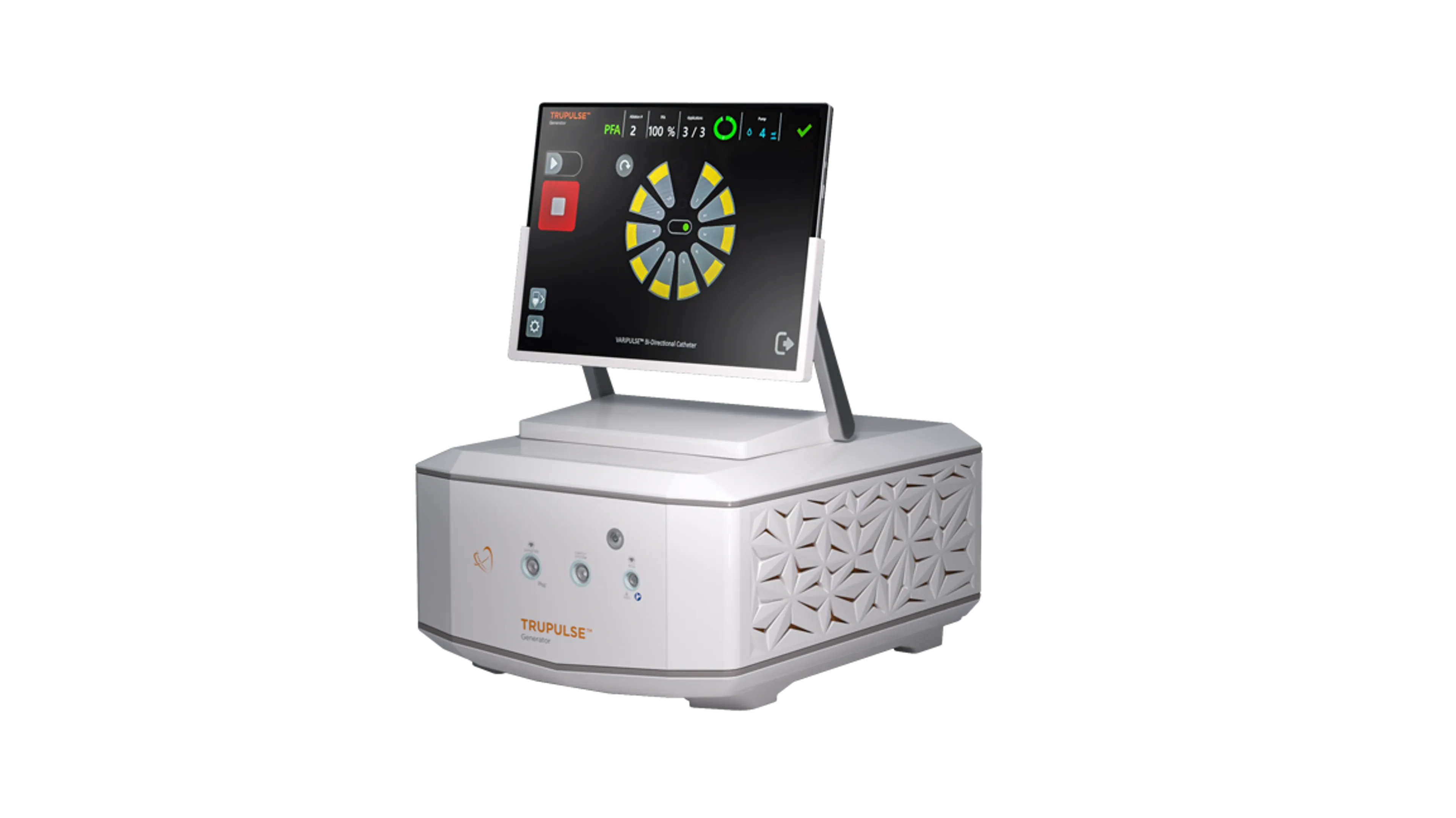

TRUPULSE™ Generator
The TRUPULSE™ Generator is the cornerstone of your PFA procedures. The system delivers a unique bi-polar, bi-phasic pulse sequence specifically tailored for the VARIPULSE™ Catheter design.
- Automatically detects which catheter is connected and loads the correct pulse sequence
- Maximize lab uptime with field upgradeable software and on-screen troubleshooting
- Connect two touch screen monitors for management from both the operating theatre and the control room
- Control ablation via the foot pedal or the touch screen monitors
- Select from 33 different languages for onscreen display
High power and enhanced control

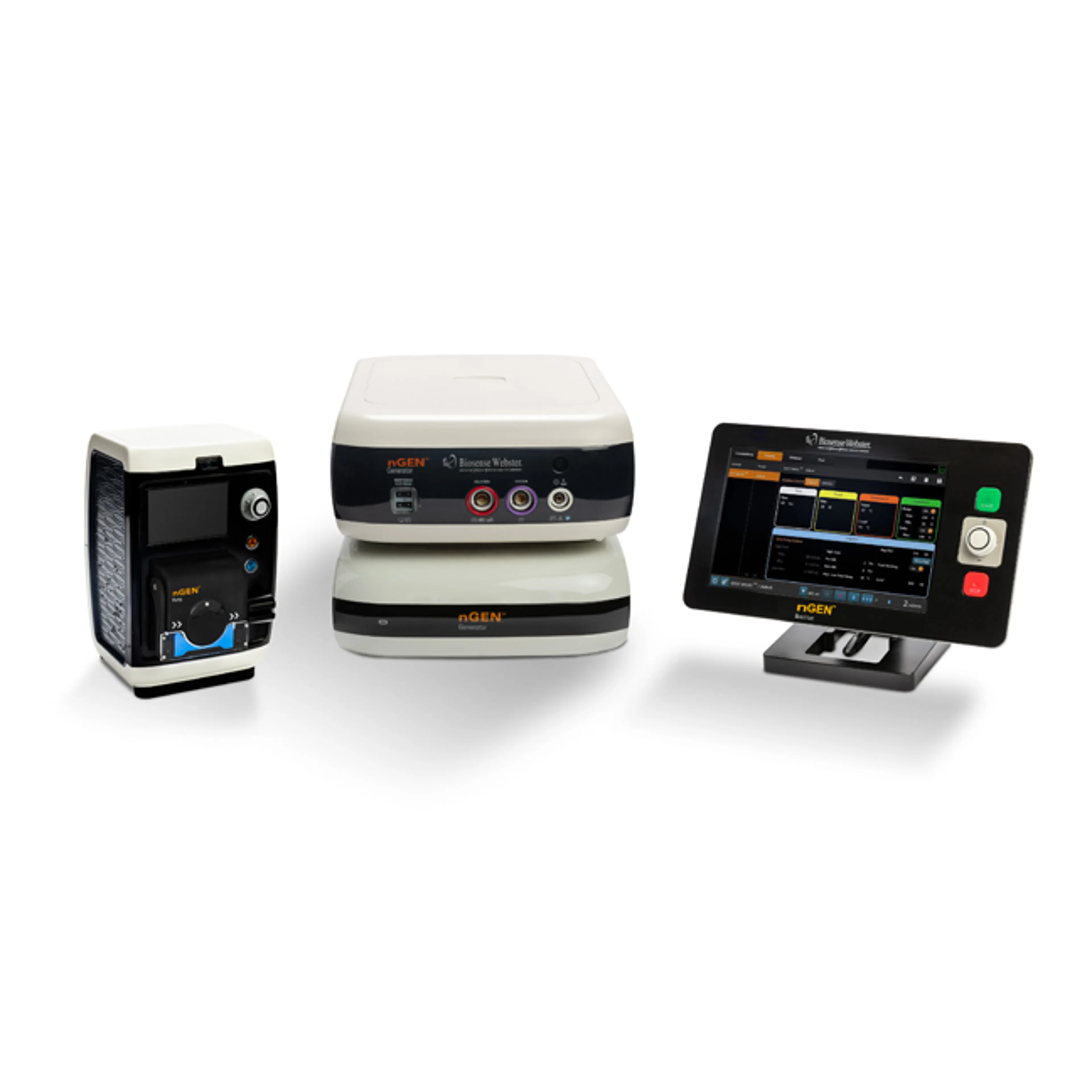

nGEN™ Generator
The nGEN™ Generator platform was specifically designed to support focal, multi-electrode, and very high-power ablation all in one generator, while being fully integrated with the CARTO™ 3 System, and bringing together the full suite of ablation tools, including the QDOT MICRO™ Catheter.
Very high-power ablations up to 90Wi. Irrigation varies automatically to ensure tip remains within its target temperature range.3 Focal, high-power and very high-power cardiac ablation in one generator.ii
Different installation configurations, including bedrail mounting of the nGEN™ Monitor. Field upgradeable software permits updates without lab downtime.
Complete integration with the CARTO™ System. On-screen troubleshooting to ensure appropriate set-up and connections, with easy-to-use interface.
Supporting with excellence
Expertise at your side
Our team of clinical specialists have a deep knowledge in every aspect of the mapping technology to complement your team’s skills and offer real-time insights when you need them.
Training expertise centers
We offer a comprehensive site visit program to physicians and fellows who are interested in observing safe and effective utilization of our current technology during complex ablations in a clinical setting.
Therapy advancement program
With a focus on clear and accessible AFib education, insights from physician thought leaders, and compelling patient stories, Get Smart About AFib aims to be a trusted resource where physicians and providers can confidently refer their patients.
Patient education resources
With a focus on clear and accessible AFib education, insights from physician thought leaders, and compelling patient stories, Get Smart About AFib aims to be a trusted resource where physicians and providers can confidently refer their patients.
Browse products
References
i. When used with the QDOT MICRO™ Catheter
ii. Feature depends on use with a compatible catheter; Focal “high-power” describes 0-50W range and “very high-power” describes 51-90W range
- UG-5407-018H - ELEVATE Module Instructions for Use and Release Notes.
- UG-5400-008H - Instructions for Use Software Version 8.1
- Reddy VY, Grimaldi M, De Potter T, et al. Pulmonary Vein Isolation With Very High Power, Short Duration, Temperature-Controlled Lesions: The QDOT-FAST Trial. JACC Clin Electrophysiol. 2019;5(7):778-786.
The Johnson & Johnson and its affiliates QDOT MICRO™ Catheters and related accessory devices are indicated for catheter-based cardiac electrophysiological mapping (stimulating and recording) and, when used in conjunction with a compatible radiofrequency generator, for the treatment of:
- Type I atrial flutter in patients age 18 or older.
- Drug refractory recurrent symptomatic paroxysmal atrial fibrillation, when used with compatible three-dimensional electroanatomic mapping systems. The Johnson & Johnson and its affiliates QDOT MICRO™ Catheters provide real-time measurement of contact force between the catheter tip and heart wall, as well as location information when used with CARTO™ 3 Navigation System.
The THERMOCOOL SMARTTOUCH™ SF Catheter is indicated for the treatment of drug refractory recurrent symptomatic paroxysmal atrial fibrillation (AF) and for drug refractory recurrent symptomatic persistent AF (continuous AF > 7 days but < 1 year), refractory or intolerant to at least 1 Class I or III AAD, when used with the CARTO™ 3 System.
Important information: Prior to use, refer to the instructions for use supplied with this device for indications, contraindications, side effects, warnings and precautions. Caution: US law restricts this device to sale by or on the order of a physician.
