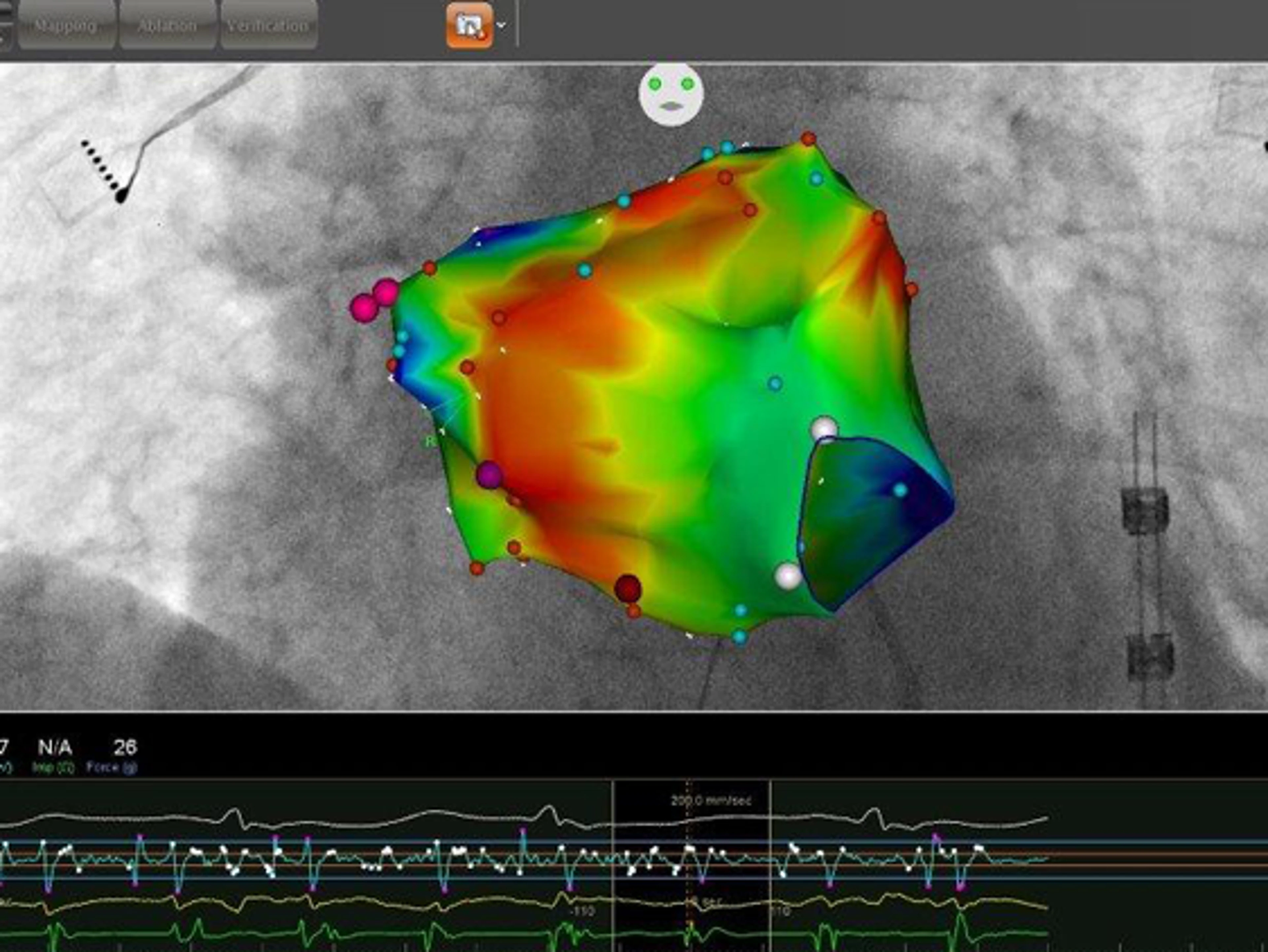

CARTO™ CFAE Module
Identify complex fractionated atrial electrograms using the CARTO™ CFAE Module. The module automatically detects complex fractionated atrial electrogram (CFAE) signals on a 3D map, integrated with the CARTO™ 3 System.
Related products
CARTO ELEVATE™ Module
CARTO™ 3 System V8 brings advanced mapping capabilities with enhanced signal analysis tools, improved substrate characterization and utilization of ultrasound technology.
CARTOSOUND™ FAM Module
Powered by Artificial Intelligence, the CARTOSOUND™ FAM Module reconstructs the left atrial (LA) anatomy on the CARTO™ 3 System with a few rotations of your ultrasound catheter, eliminating the need for manual contouring.
.png?width=3840&quality=90&format=webp)

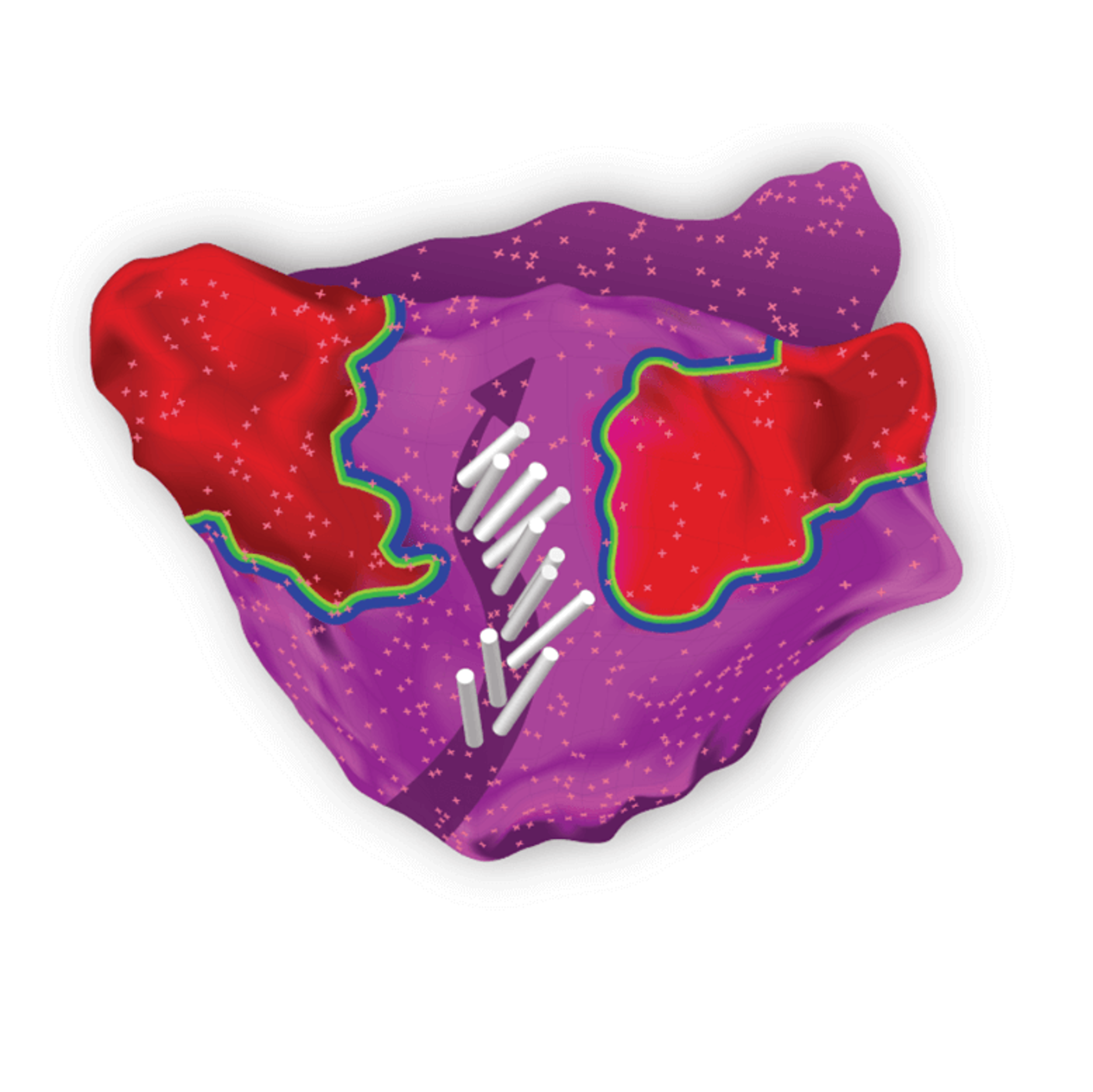

Ripple Mapping
A Ripple Map is a dynamic display of bipolar electrogram data in an electroanatomical map. At each point, the corresponding bipolar electrogram is dynamically displayed as a bar perpendicular to the map surface. The length of the bar at any given time corresponds to the point's voltage for that time.
In a single center study, Ripple Mapping guided ablation interrupted the atrial tachycardia in 95% of cases (n = 20) with the first ablation set.
References
Important information: Prior to use, refer to the instructions for use supplied with this device for indications, contraindications, side effects, warnings and precautions. Caution: US law restricts this device to sale by or on the order of a physician.
The clinical significance of utilizing the CARTO™ CFAE Module to help identify areas with complex fractionated atrial electrograms for catheter ablation of atrial arrhythmias, such as atrial fibrillation, has not been established by clinical investigations.
