CARTO PRIME™ Module
CARTO™ 3 System and the CARTO PRIME™ Module offers advancement in 3D mapping technology. From signals to diagnosis, across a wide range of electrophysiology procedures, we are re-framing the future of electrophysiology.
.png?width=3840&quality=90&format=webp)
Clinical evidence
93.3%
Cases successfully identified the mechanism of scar-related atrial tachycardias1
In a prospective multi-center study (n=20), Coherent Mapping cases.
9mm
Average position shift between LAT Hybrid PVC Mapping Location and its associated Standard PVC Mapping Location2
In a prospective multi-center study (n=18), LAT Hybrid cases.
Features & benefits
.png?width=3840&quality=90&format=webp)

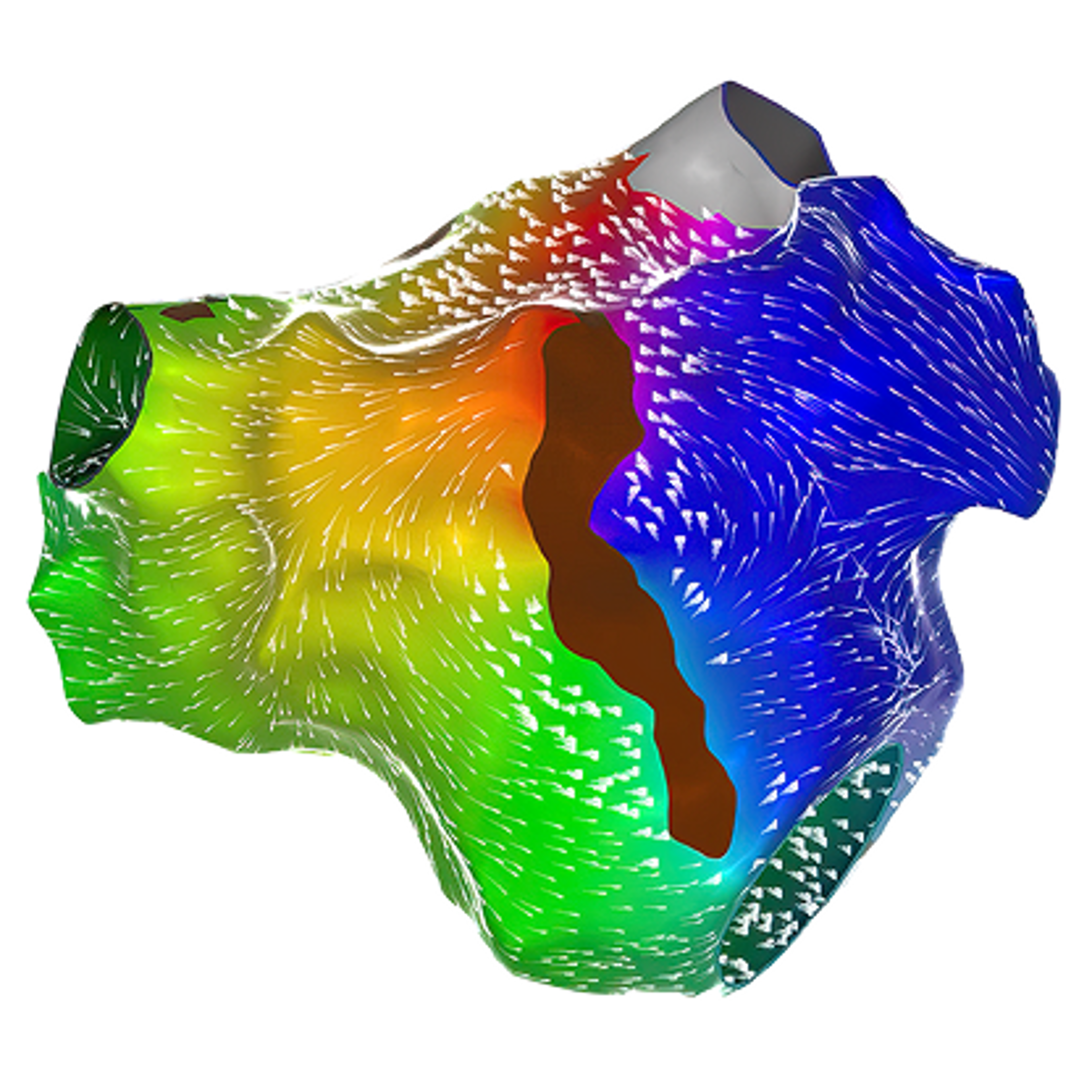

Coherent Mapping
Coherent Mapping may simplify the diagnosis of scar‐related complex atrial arrhythmia by applying physiological constraints on LAT information. It improves accuracy of ablation site identification.1
Features:
- Conduction ID
- Conduction velocity vectors
- Conduction barrier zones; such as scar, slow conduction and anatomical structures
.png?width=3840&quality=90&format=webp)

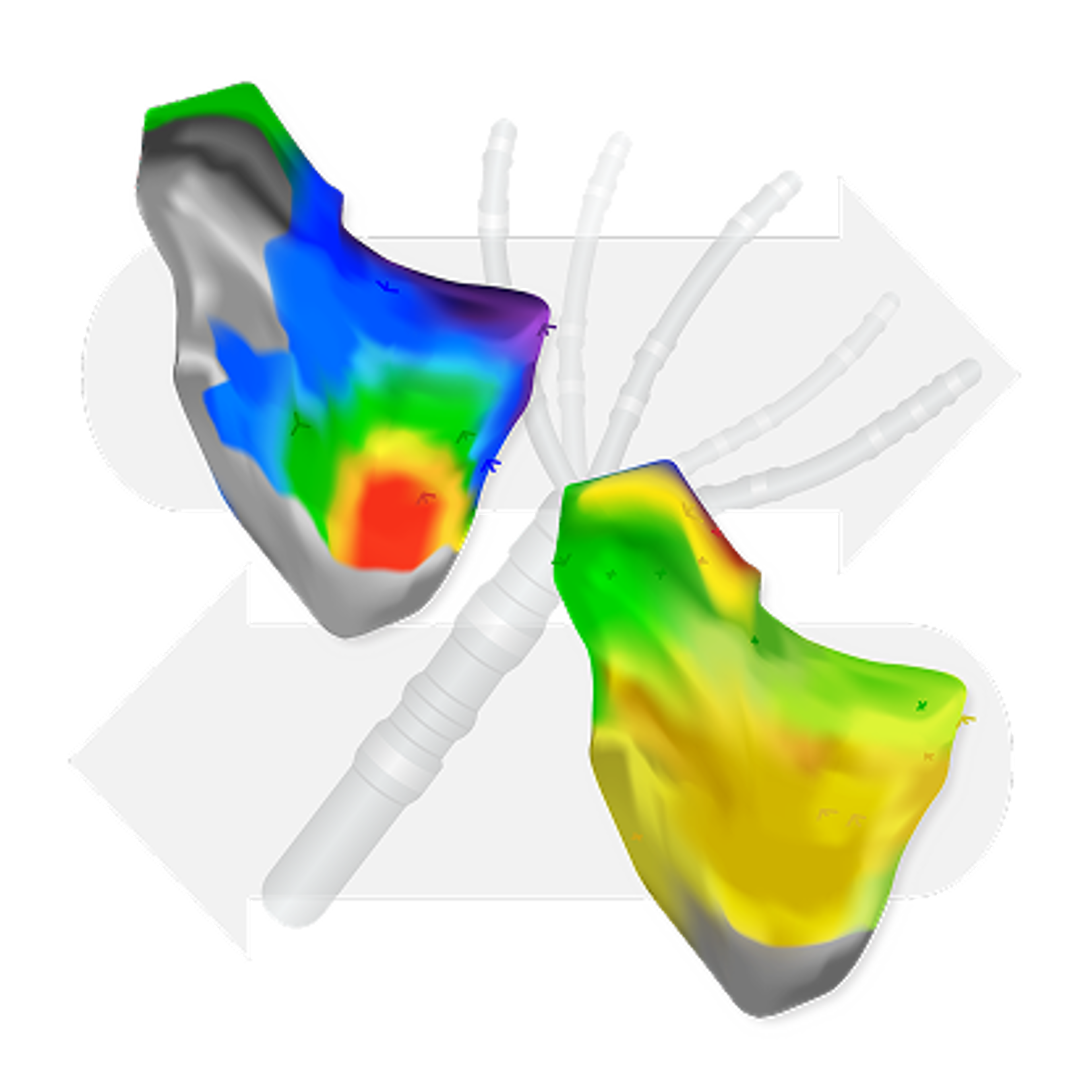

Parallel Mapping and Map Replay
- Real-time acquisition: Use Parallel Mapping to create a group up to 4 maps and assign each one a different set of acquisition filters. During continuous acquisition, EA points are acquired to the appropriate map.3
- Recalculate an existing map: The Map Replay option creates a new map by recalculating an existing map according to different acquisition filters.3
- Retrospectively acquire points from a specific time in the study: Define a time frame in the CARTOREPLAY™ Module Timeline and acquire points according to the acquisition filters in the current Active Map.3
.png?width=3840&quality=90&format=webp)

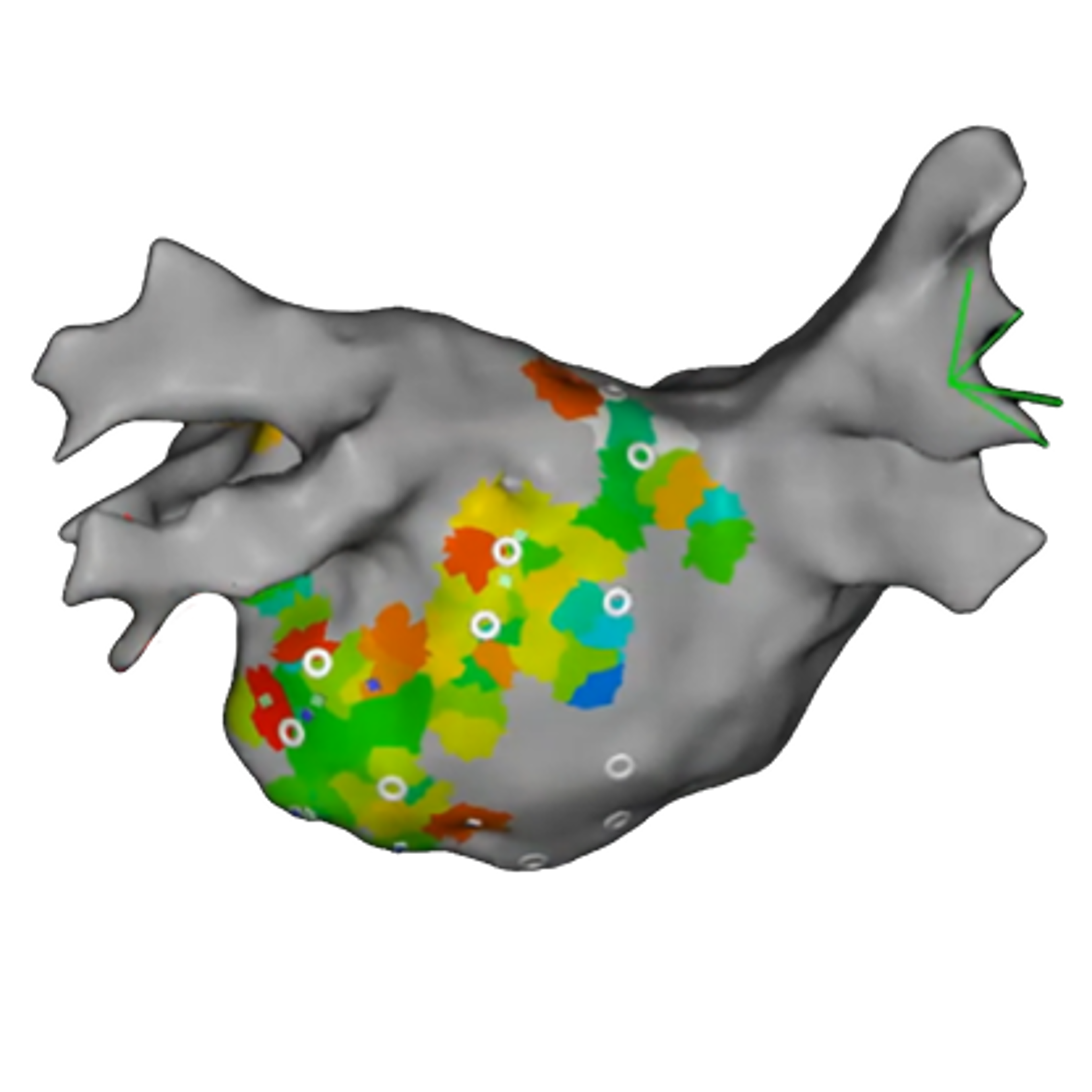

CARTOFINDER™ Module
The CARTOFINDER™ Module provides automatic analysis of multiple, simultaneous intracardiac (IC) signals and enables the creation of high density dynamic maps.3
.png?width=3840&quality=90&format=webp)

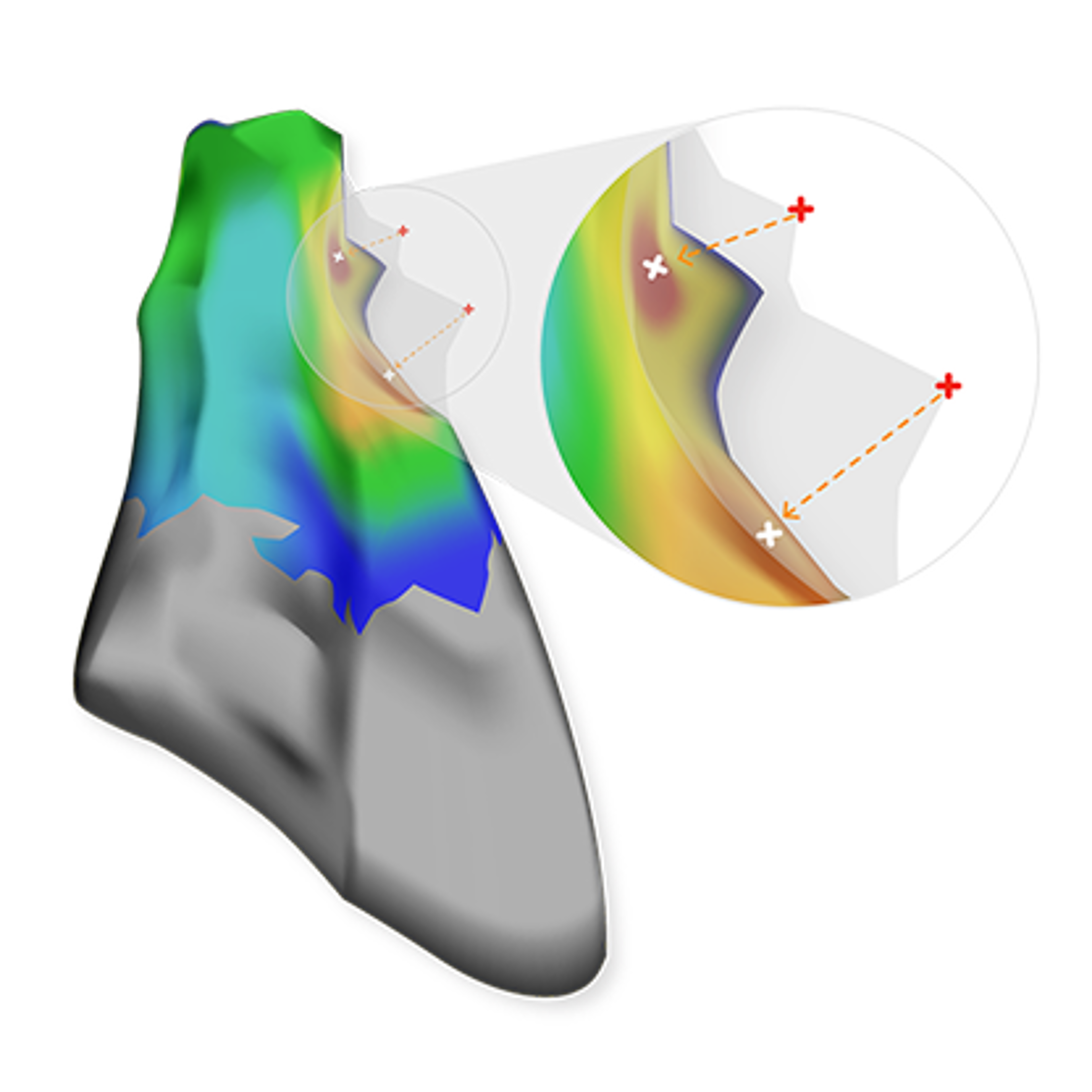

LAT Hybrid
Transient changes in the heart rhythm, such as Premature Ventricular Contraction (PVC), can lead to catheter displacement compared to normal sinus activation. LAT Hybrid maps provide a solution for PVC mapping by creating a hybrid point: the coloring reflects the LAT value during PVC rhythm, and the location corresponds to the location during sinus rhythm.3
