Ultrasound solutions
Johnson & Johnson MedTech Cardiovascular is the leading expert in ICE technology, with nearly 2 decades of ICE experience and a reach of over 2 million US patients and counting.
Experience the standards of tomorrow, today.
98%
Successful appendage sealing
When evaluated at 56 days follow up with a TEE, >98% of patients had appendage sealing (no leaks >3mm) when using the NUVISION™ Ultrasound Catheter.1
Registry study (n=54): mean TEE follow-up at 56 ± 9 days
26x
Up to 26% shorter procedure time vs TEE2
The NUVISION™ Ultrasound Catheter had 26% shorter procedure time compared to TEE in a real-world registry study.*
Zero fluoroscopy workflow
The Johnson & Johnson MedTech electrophysiology portfolio has the first and only integrated ecosystem indicated to be used as part of zero fluoroscopy workflow for atrial fibrillation (AFib) treatment.
Anchored by the CARTO™ 3 System, our diagnostic, ablation and intracardiac echocardiography (ICE) products help to enable efficient and safe cardiac ablation procedures while eliminating risks associated with fluoroscopy.3-6

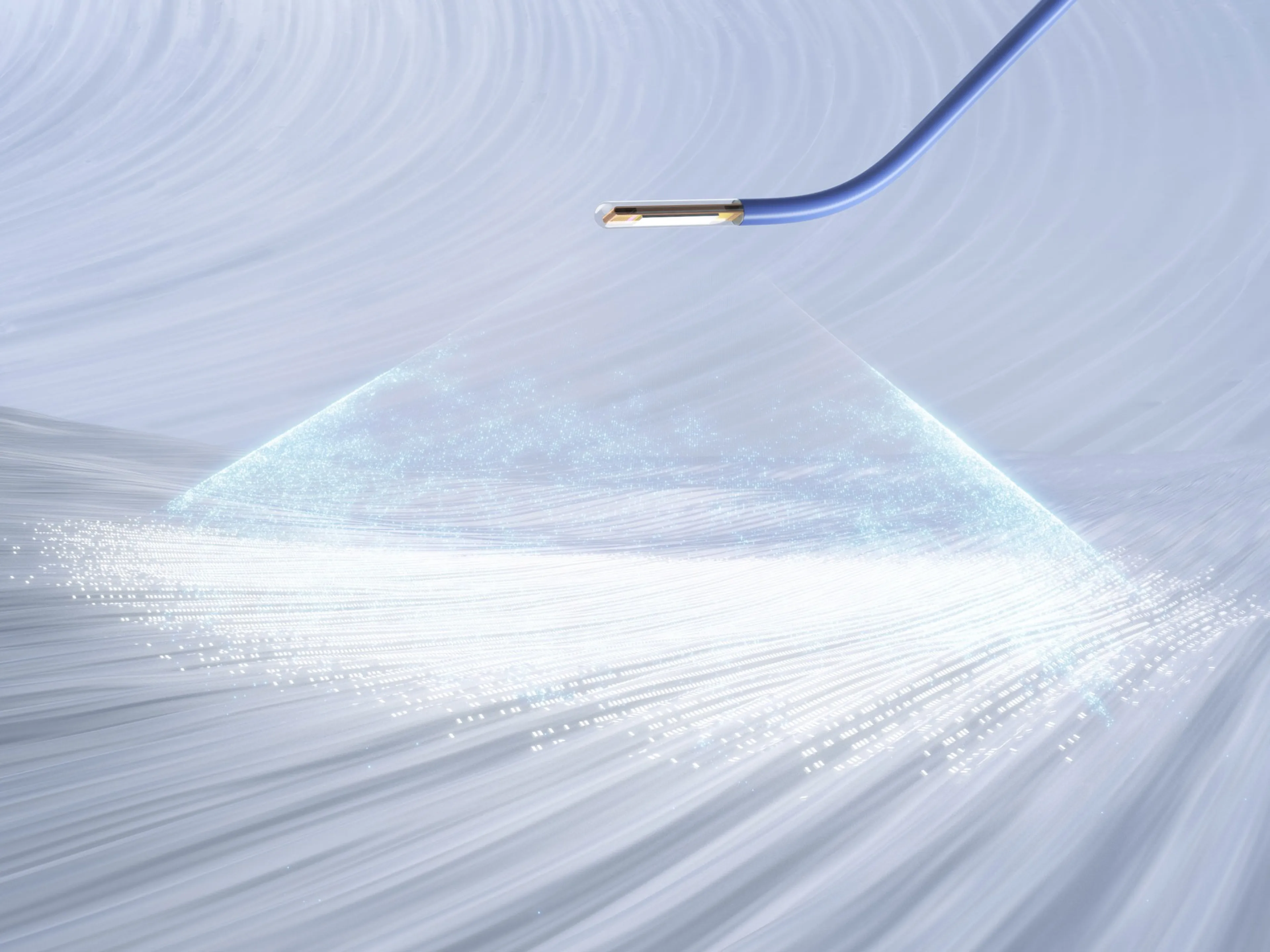

NUVISION™ Ultrasound Catheter
NUVISION™ Ultrasound Catheter with 4D ICE technology, from the trusted leader in ICE, is a less invasive alternative to TEE for LAAO and other structural heart procedures that can target anatomy beyond the reach of TEE (such as the tricuspid valve), enabling physicians to access a 90 x 90 field of view of the intracardiac landscape with stability, ease, and control for confident, high resolution catheter visualization during a streamlined procedure that promotes workflow optimization and healthcare utilization, balancing costs with TEE and elevating the patient experience while also expanding access when TEE or GA is contraindicated.
Visualization. Optimization. Elevation.
The advanced technology with 4D imaging and multi-planar visualization allows you to access the complete intracardiac landscape for an entirely new and accurate perspective. The advanced catheter is designed to guide your percutaneous cardiac procedures - empowering you with the high-resolution insights you need to make quick, confident decisions.1,9
NUVISION™ Ultrasound Catheter’s independent rotating tip allows you to obtain crucial views of targeted anatomy with ease and outcomes comparable to TEE. Its unique knob allows you to adjust for fine details without ever turning the handle, providing stability when it matters most so you can focus less on manipulating the catheter and more on patients and the procedure.
Transforming ultrasound. Elevating visualization.

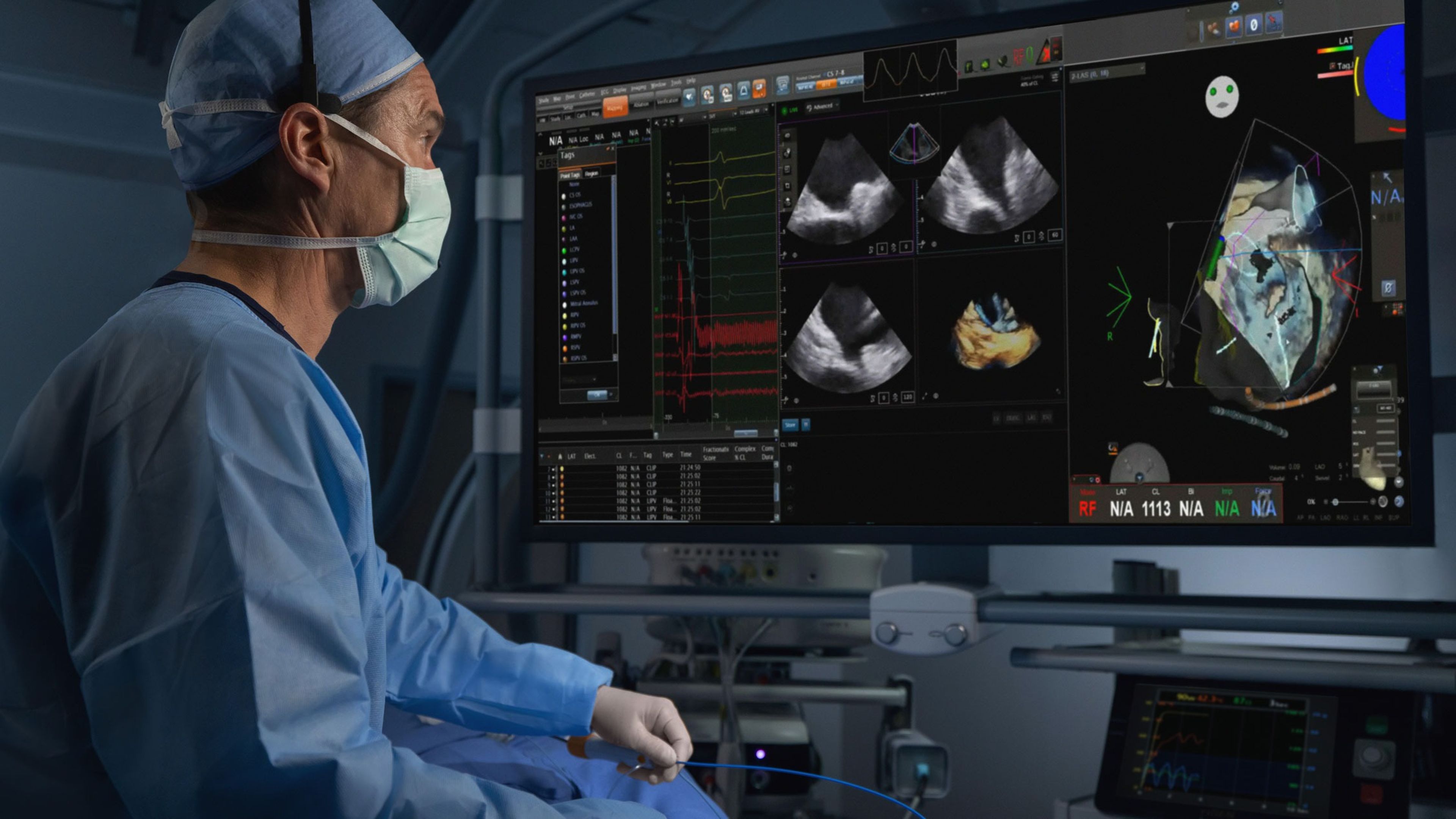

NUVISION™ NAV Ultrasound Catheter
NUVISION™ NAV Ultrasound Catheter is the most comprehensive 4D ICE guidance available for concomitant procedures.
Only NUVISION™ NAV seamlessly integrates 4D ICE ultrasound with the CARTO™ 3 System, the world’s leading cardiac mapping system, to provide real-time high-definition tissue visualization.
By elevating integration to include 4D ICE, physicians can confidently and efficiently navigate procedures with high-definition detail, insight, and precision, with reduced fluoroscopy and general anesthesia.i
Clarity evolved

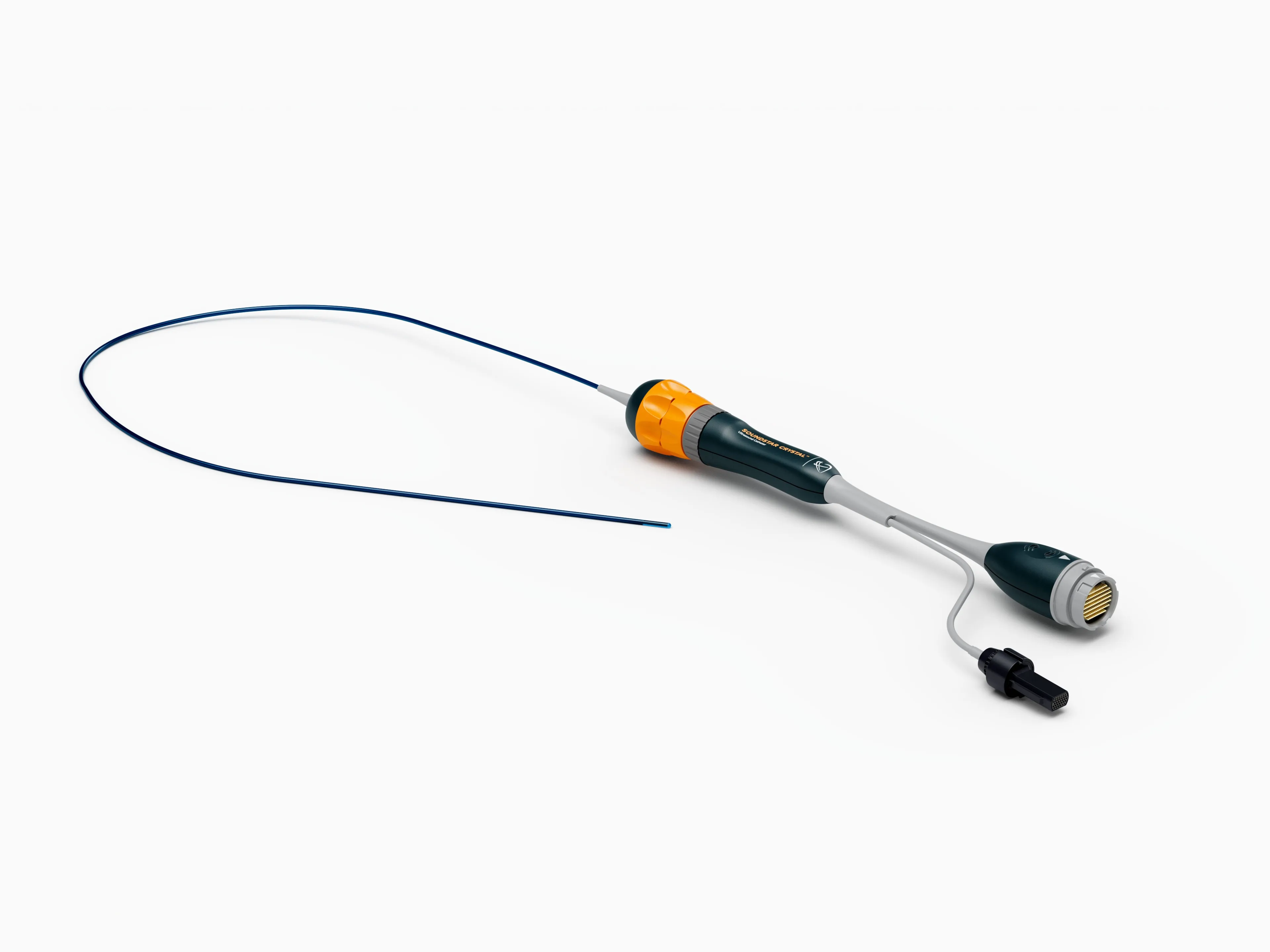

SOUNDSTAR CRYSTAL™ Ultrasound Catheter
As the go-to 2D intracardiac catheter of the future, SOUNDSTAR CRYSTAL™ not only offers advanced imaging, but also integrates perfectly with the CARTO™ 3 Mapping System for a cohesive and efficient workflow.**
Integrated with the CARTOSOUND™ Module, SOUNDSTAR CRYSTAL™ Ultrasound Catheter offers clear visualization and tissue definition with enhanced far field imaging, giving users added confidence in procedures.**

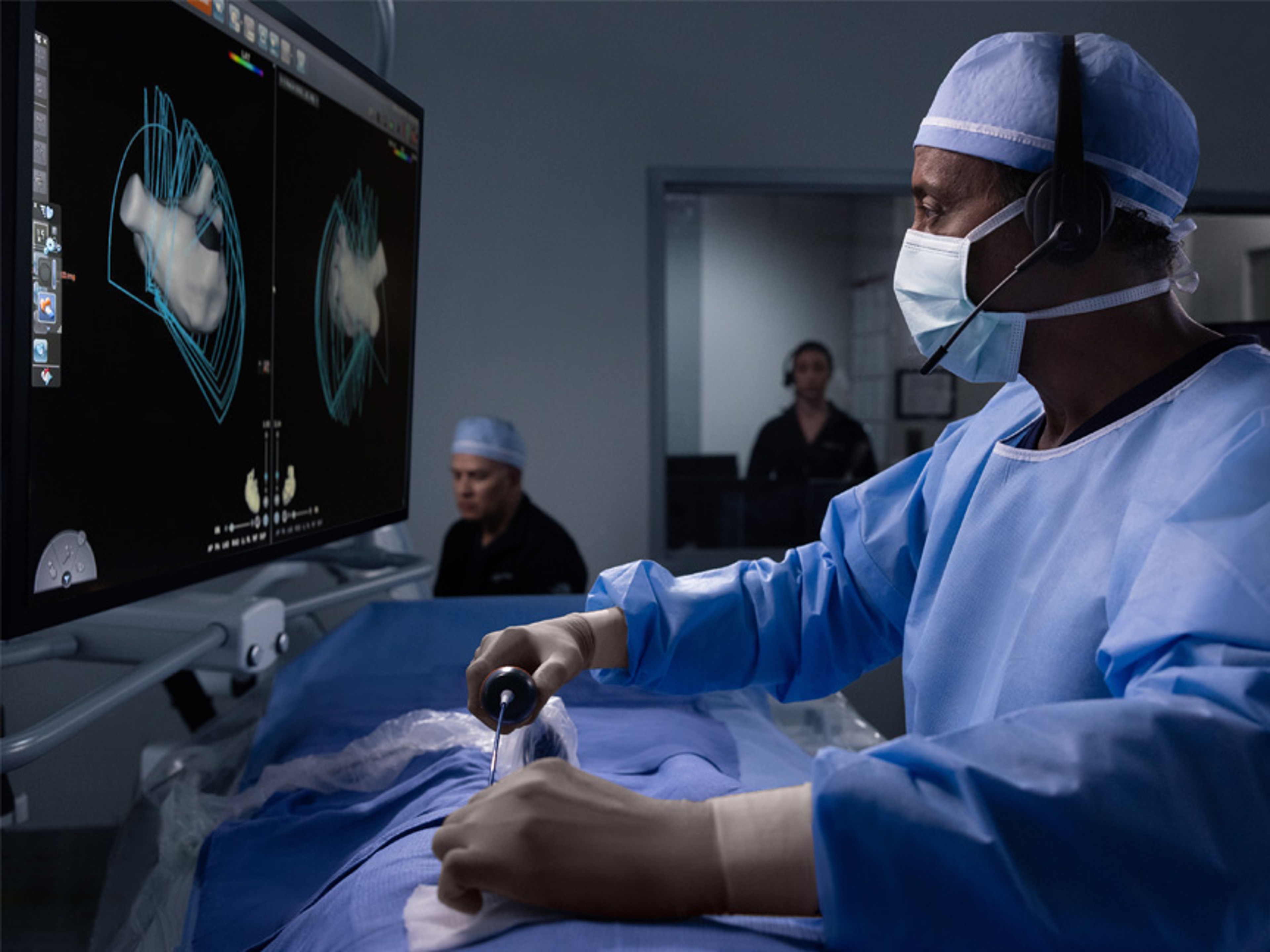

Powered by Artificial Intelligence, CARTOSOUND™ FAM reconstructs the left atrial (LA) anatomy on the CARTO™ 3 Mapping System with a few rotations of your ultrasound catheter, eliminating the need for manual contouring.****7,8
Image quality redefined

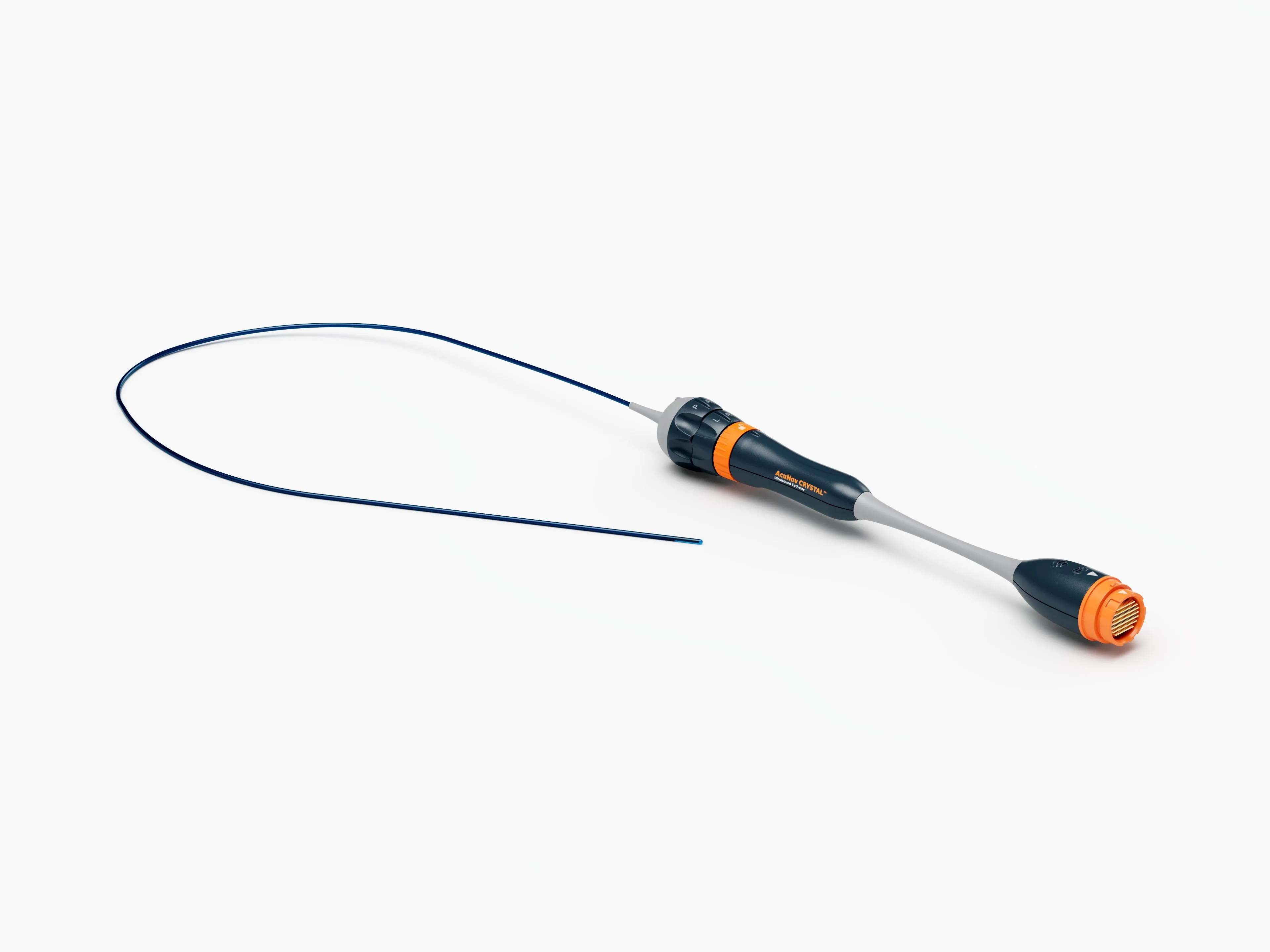

AcuNav CRYSTAL™ Ultrasound Catheter
Experience advanced far-field penetration and tissue clarity, addressing a critical need for precise imaging during procedures.***
With an 88-element phased linear array, the AcuNav CRYSTAL™ Ultrasound Catheter delivers superior image quality, making it a clear choice for physicians seeking the best in intracardiac imaging.**
AcuNav CRYSTAL™ Ultrasound Catheter provides clear, high resolution images for identification of key anatomical structures.***
Supporting with excellence
Expertise at your side
Our team of clinical specialists have a deep knowledge in every aspect of the mapping technology to complement your team’s skills and offer real-time insights when you need them.
Training Expertise Centers
We offer a comprehensive site visit program to physicians and fellows who are interested in observing safe and effective utilization of our current technology during complex ablations in a clinical setting.
Therapy Advancement Program
Through every step of your journey, our Therapy Advancement Program (TAP) empowers you with the resources, tools, and support to treat more AFib patients—while potentially increasing access to care.
Patient Education Resources
With a focus on clear and accessible AFib education, insights from physician thought leaders, and compelling patient stories, Get Smart About AFib aims to be a trusted resource where physicians and providers can confidently refer their patients.
Browse products
References
*Retrospective registry analysis (n=121); 66.7±34.4 min for NUVISION™ Ultrasound Catheter vs 90.2±24.3 min for TEE (p<0.001)
**Based on Siemens' internal report CRF data responses as of 8/9/2024. CRF Data PN 11291187-EPT-021.
***When compared to ACUSON AcuNav™ Ultrasound Catheter
****CARTOSOUND™ FAM Module uses Deep Learning, which is a subset of AI
i. When compared to 2D Ultrasound
References:
- Della Rocca DG, Magnocavallo M, Gianni C, et al. Three-dimensional intracardiac echocardiography for left atrial appendage sizing and percutaneous occlusion guidance. Europace. 2023;26(1):euae010
- Adams A, Mahmood R, Balaji N, Dixit P, Chandra S, Weisman D. Real-world experience utilizing the nuvision 4D intracardiac echocardiography catheter for left atrial appendage closure. Sci Rep. 2024 May 24;14(1):11937. doi: 10.1038/s41598-024-60692-5. Erratum in: Sci Rep. 2024 Aug 1;14(1):17794.
- Debreceni D, Janosi K, Bocz B, et al. (2023). Zero fluoroscopy catheter ablation for atrial fibrillation: a systematic review and meta-analysis. Front Cardiovasc Med;10:1178783. doi: 10.3389/fcvm.2023.1178783.
- Rajendra A, Hunter TD, Morales GX, et al. (2023). Steerable sheath visualizable under 3D electroanatomical mapping facilitates paroxysmal atrial fibrillation ablation with minimal fluoroscopy. J Interv Card Electrophysiol;66(2):381-388. doi: 10.1007/s10840-022-01332-8.
- Tahin T, Riba A, Nemeth B, et al. (2021). Implementation of a zero fluoroscopic workflow using a simplified intracardiac echocardiography guided method for catheter ablation of atrial fibrillation, including repeat procedures. BMC Cardiovasc Disord;21(1):407. doi: 10.1186/s12872-021-02219-8.
- Biosense Webster, Inc. 2023 Press Release 254970-230726: Biosense Webster Receives FDA Approval for Multiple Atrial Fibrillation Ablation Products to be Used in a Workflow Without Fluoroscopy.
- Di Biase L, Zou F, Lin AN, et al. Feasibility of Three-Dimensional Artificial Intelligence Algorithm Integration with Intracardiac Echocardiography for Left Atrial Imaging During Atrial Fibrillation Catheter Ablation. Europace. 2023 Aug 2;25(9):euad211.
- CARTOSOUND™ FAM Module Instructions for Use. UG_5462-00A. February 2024
- NUVERA Report, B-Mode Penetration Test. RPT11476, Nov 9, 2020.
Biosense Webster, Inc.’s products with FDA approved/cleared instructions for use to support fluoro alternative workflows when used with the CARTO™ 3 System include the following: THERMOCOOL SMARTTOUCH™ SF Catheter, THERMOCOOL SMARTTOUCH™ Catheter, VARIPULSE™ Catheter, CARTO™ VIZIGO™ Bi-Directional Guiding Sheath, PENTARAY™ NAV ECO High Density Mapping Catheter, OCTARAY™ Mapping Catheter with TRUEref™ Technology, OPTRELL™ Mapping Catheter with TRUEref™ Technology, DECANAV™ Mapping Catheters, and Webster™ CS Catheter.
QDOT MICRO™ Catheters provide real-time measurement of contact force between the catheter tip and heart wall, as well as location information when used with CARTO™ 3 Navigation System.
Important Information: Prior to use, refer to the instructions for use supplied with the device(s) for indications, contraindications, side effects, warnings and precautions.
US_ELP_ULTR_406417
