MEGADYNE™ Smoke Evacuator
Product Codes:
MESE1, ECVV120, ECVV220MEGADYNE™ Smoke Evacuator
Product Codes:
MESE1, ECVV120, ECVV220Surgical Smoke can greatly decrease site visibility and impact air quality in the surgical suite. The MEGADYNE Smoke Evacuator was made to help. The filter is designed to capture particulates and microorganisms of 0.1-0.2 microns at 99.999% effectiveness1 and offers a user friendly and ultra-quiet design for use in open and laparoscopic procedures.
IMAGES
About this Device

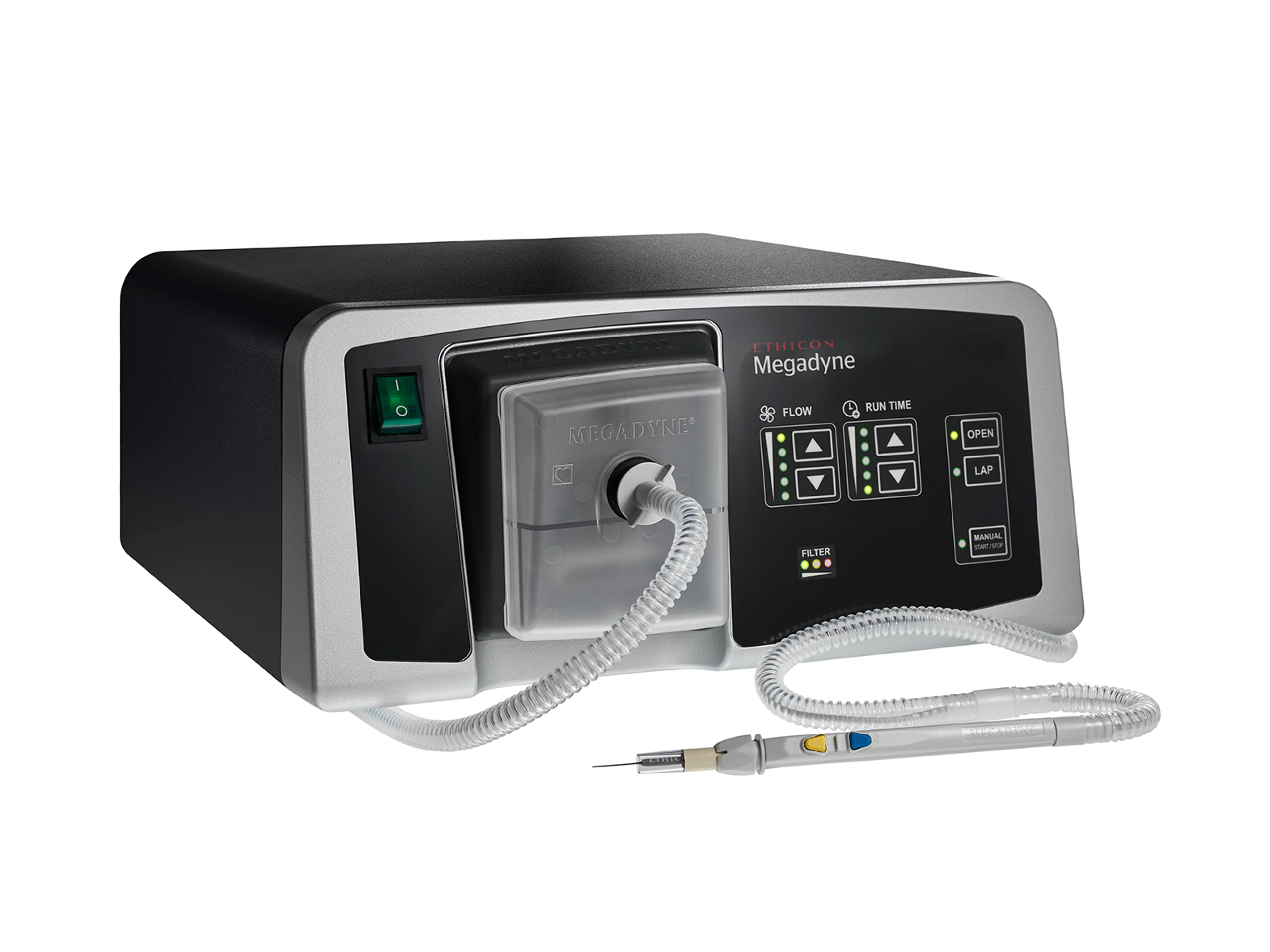

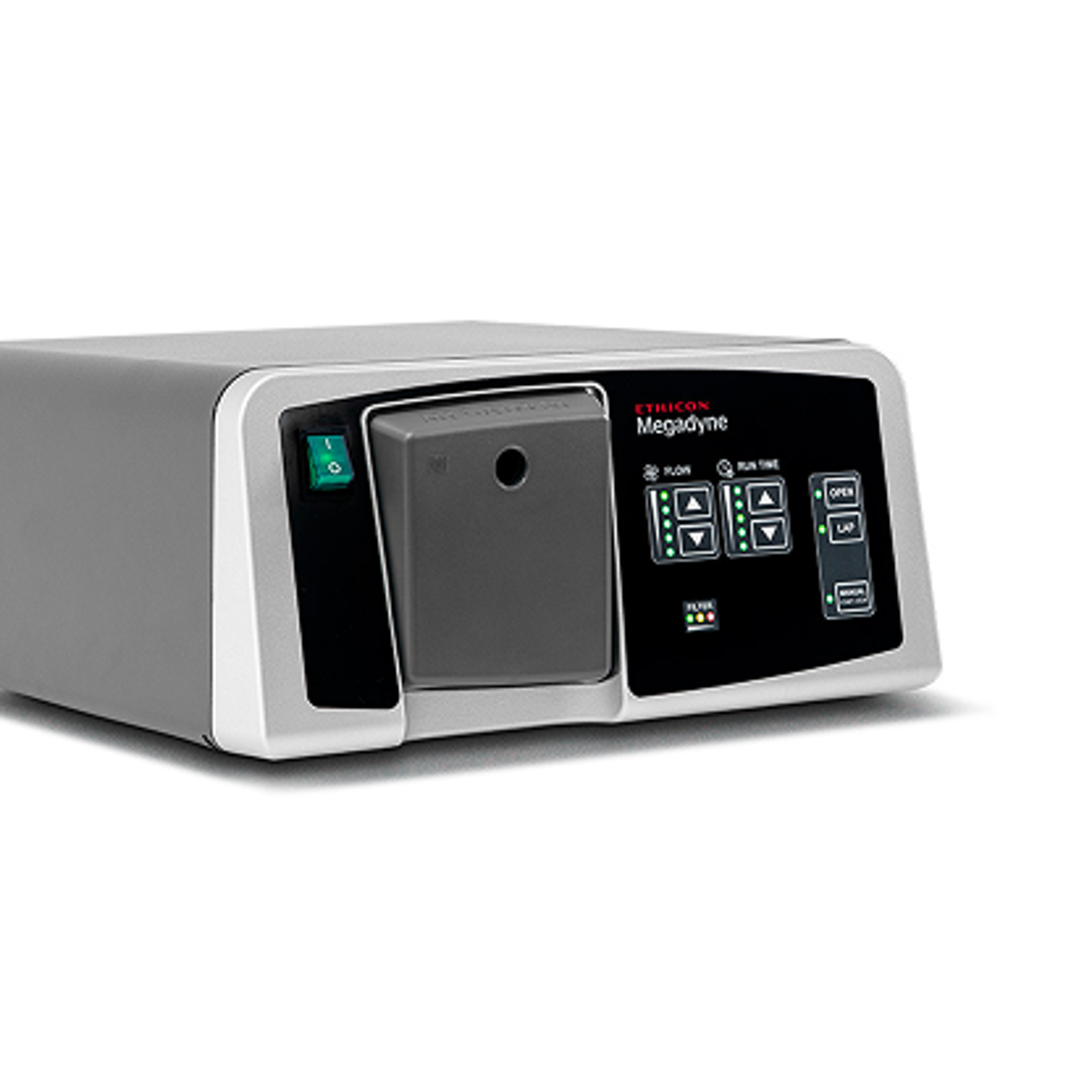

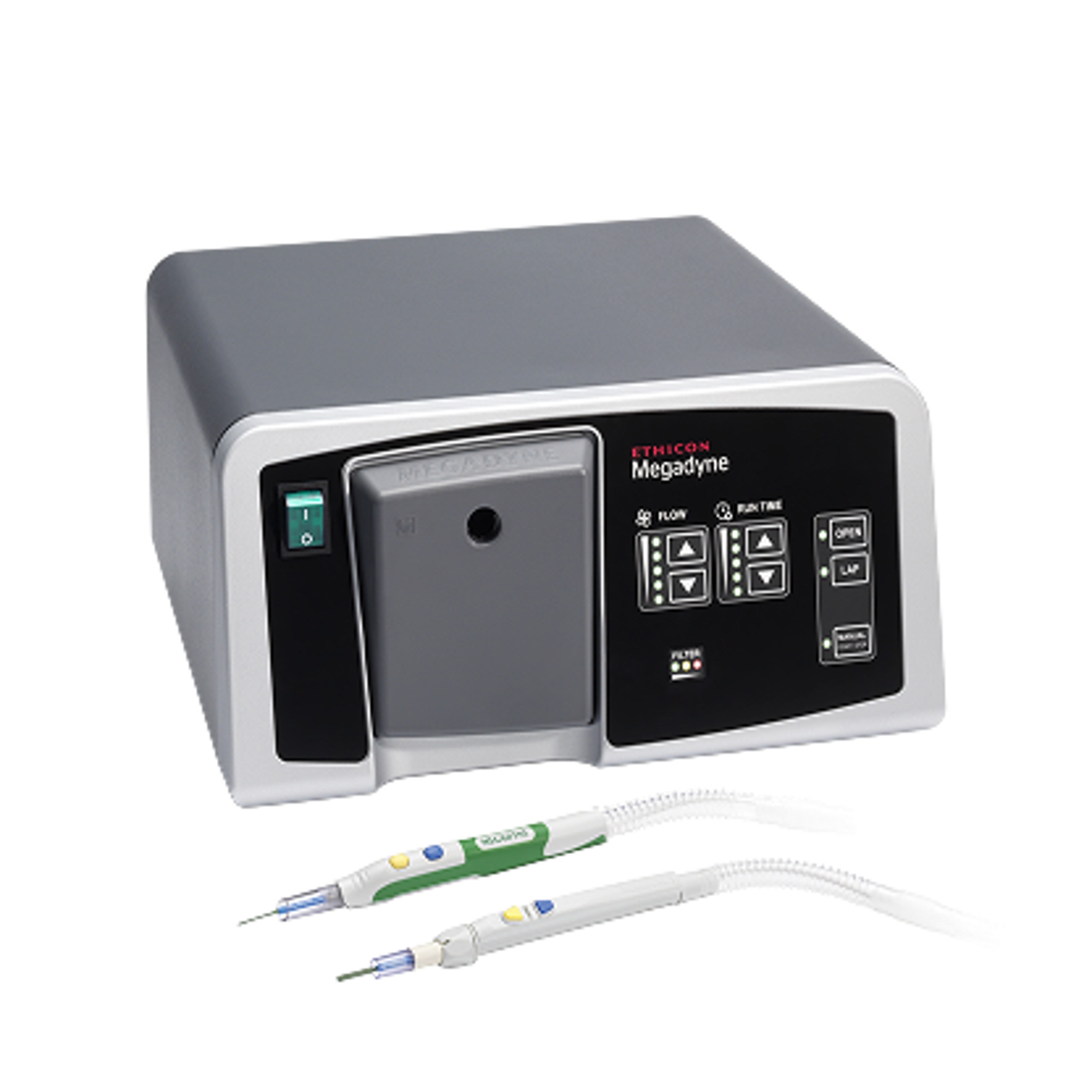

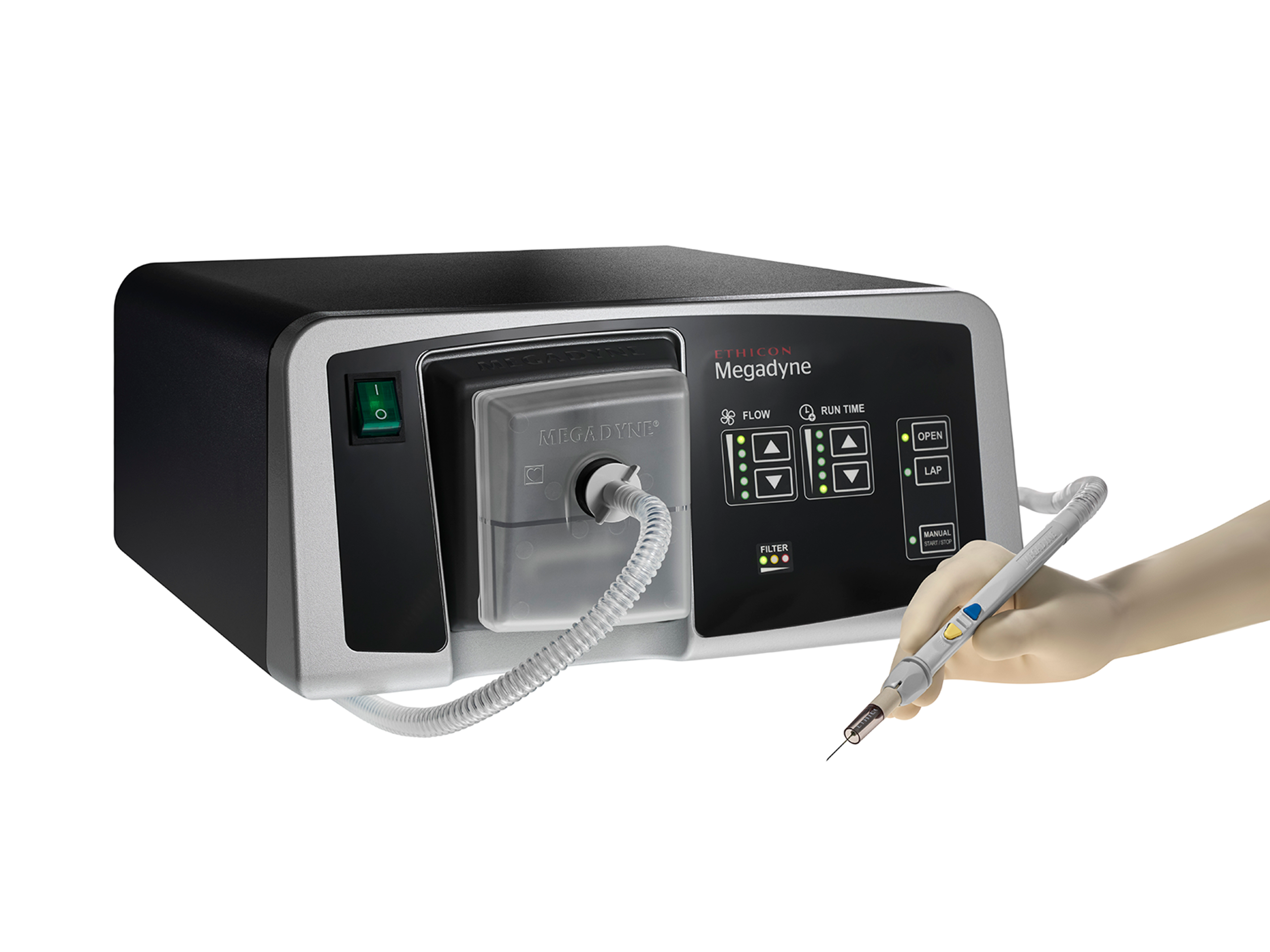

MEGADYNE Smoke Evacuator is designed to provide smoke evacuation in open and laparoscopic procedures for the removal of surgical smoke. It is compatible with monopolar, bipolar, ultrasonic and advanced bipolar energy devices. The Smoke Evacuator automatically detects energy device activation to trigger smoke evacuation or the surgeon can push the start/stop button to activate.
Features & Benefits
Flexible
With three ways to activate smoke evacuation, five levels of flow rate, adjustable run times, and the ability to be used with both core and advanced energy products.
Effective Filtering

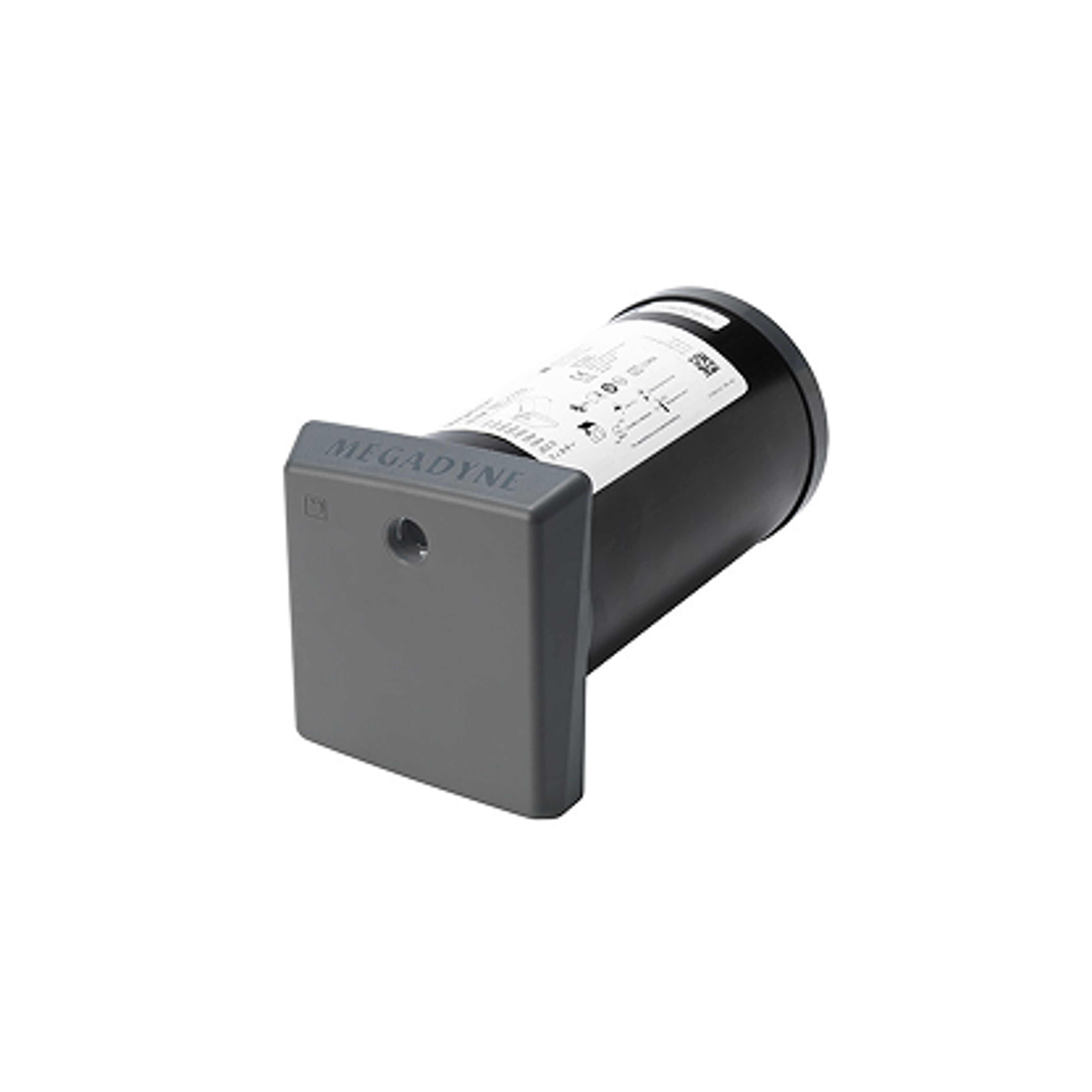

MEGADYNE™ Smoke Evacuator is capable of capturing particulates of 0.02-0.10 micron at 99.9999% efficiency1 and lasts for up to 36 hours of activation time.
Quiet
MEGADYNE™ Smoke Evacuator is designed to have effective and quiet performance for open and laparoscopic procedures.2
Device Specifications and Comparisons
Device Specifications and Comparisons
The MEGADYNE™ Smoke Evacuator is designed for use during open and laparoscopic procedures. The MEGADYNE Smoke Evacuator is used with accessories such as sterile smoke evacuation pencils, advanced energy sealing devices, and tubing of various sizes in conjunction with electrosurgical generators. The intended purpose of the MEGADYNE Smoke Evacuator with accessories is to remove surgical smoke created at the surgical site, resulting in a reduction of surgical smoke exposure and for better surgical site visibility for the surgeon and healthcare workers.
Similar Products: ConMed ClearView™, ConMed ViroVac®, and Medtronic RapidVac™
Featured Product |
||
|---|---|---|
|
|
|
MEGADYNE™ Smoke Evacuator |
Not Applicable |
|
Codes |
MESE1, ECVV120, ECVV220
|
—
|
Compatible Pencils |
251010J, 251015J, 252510, ME7251ST, ME725M1ST, ME7251C, ME725M1C, ME7251E, ME725M1E, 212009J, MEGEN1 | — |
Compatible Accessories |
2550J, 2555J, 2255J, 2403J, 2406J, 2390J, 2395J | — |
Accessories Included |
2550J, 2555J, 2403J | — |
Description |
Smoke evacuator system | — |
Dimensions (LxWxH) |
16” x 15” x 7.4” | — |
Weight |
28 lbs | — |
Maximum Flow Rate |
118 LPM (Liters Per Minute) in OPEN mode, 41 LPM in LAP mode | — |
Minimum Flow Rate |
71 LPM in OPEN mode, 5 LPM in LAP mode | — |
Variable Flow Control |
Yes | — |
Device Technology |
Smoke Evacuation | — |
Surgical Approach |
Open & Laparoscopic | — |
Qty./Box |
1 | — |
Supporting Documentation
Evidence Resources
-
MEGADYNE™ Smoke Henry Ford Case Study
-
Ferko 2021 Article
-
Romano 2017 Article
-
Select all documents (3)
Product Resources
-
MEGADYNE™ Smoke Evacuator Filtration Fact Sheet
-
MEGADYNE™ Smoke Evacuator Competitive Noise Comparison
-
MEGADYNE™ Smoke Evacuator Frequently Asked Questions
-
MEGADYNE™ Smoke Evacuation Portfolio VAC Pack
-
Burden and Epidemiology of Surgical Smoke Evacuation – Value Analysis Brief
-
MEGADYNE™ Smoke Evacuation IFU
-
MEGADYNE™ Smoke Evacuation 510(k)
-
Select all documents (6)
References
1. (100299‐181008).
2. Captures and filters 99.9999% of particulates and microorganisms 0.02 to 0.1 microns, at 50 +/‐ 10 dBa per IEC 60601‐1 @ 1m. (100280‐211115)
