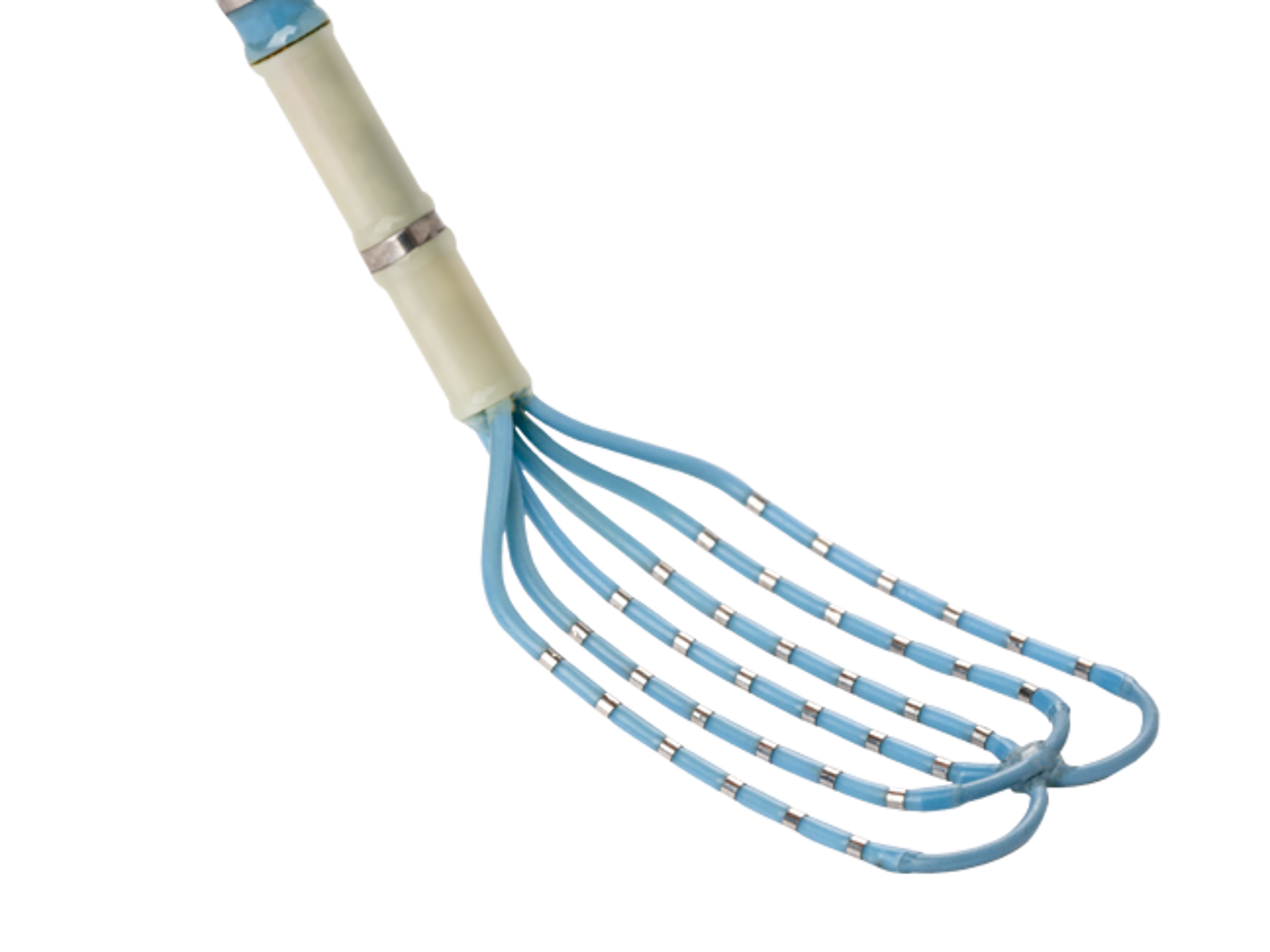

OPTRELL™ Mapping Catheter with Multipolar Technology
To aid in the most complex cases, the OPTRELL™ Mapping Catheter’s intuitive design and fixed electrode array work with the CARTO™ 3 System to deliver intelligent insights and high-resolution directional mapping.1,2
About this device
The OPTRELL™ Mapping Catheter with TRUEref™ Technology is designed to facilitate electrophysiological mapping of the heart with the CARTO™ 3 System. It is designed for deployment in a heart chamber through an 8.5 F guiding sheath.

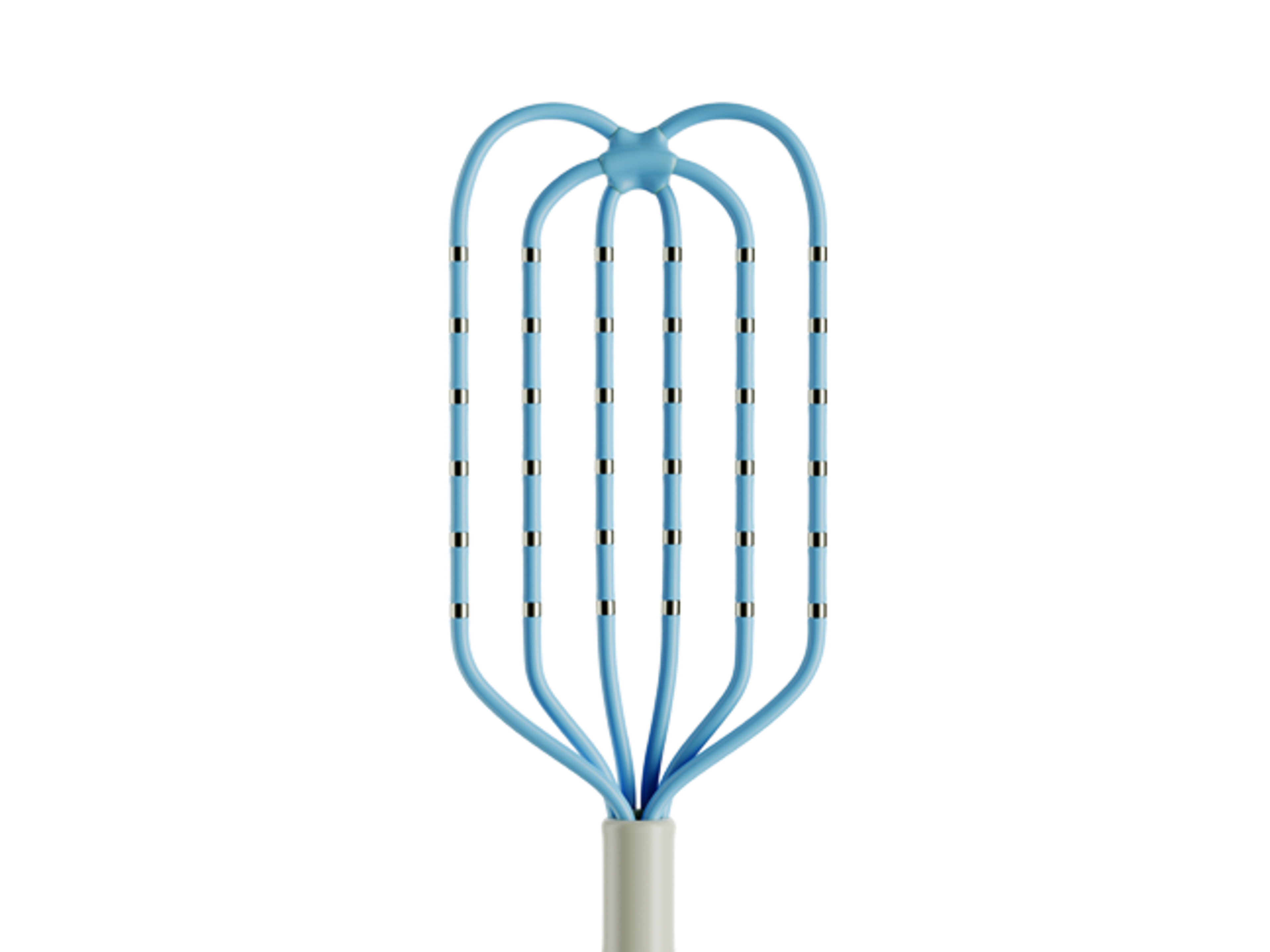

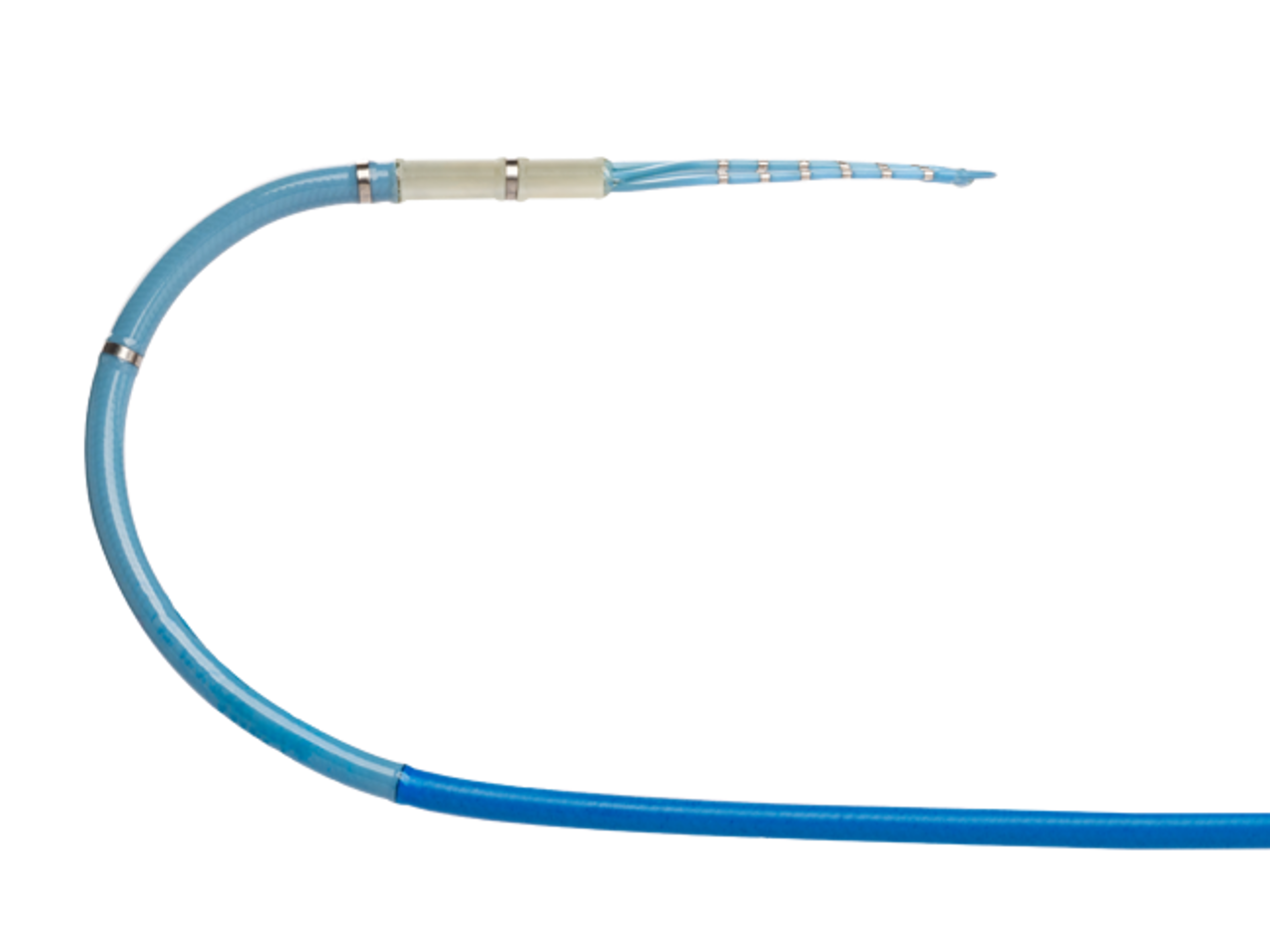

This bi-directional deflectable catheter includes 6 parallel 2 F spines that are joined to form 3 loops on the deflectable tip. Each spine has 6 platinum electrodes that are used for stimulating and recording.
Specialties
Cardiac Electrophysiology (EP)
Procedures
Cardiac Catheter Ablation, Procedure Electroanatomical Mapping (EAM)
Disclaimer
DO NOT use OPTRELL™ Mapping Catheter in patients with prosthetic valves.
Designed for complex cases
To aid in the most complex cases, the OPTRELL™ Mapping Catheter’s intuitive design and fixed electrode array work with the CARTO™ 3 System to deliver intelligent insights and high-resolution directional mapping.3
High-resolution directional mapping
OPTRELL™ Mapping Catheter offers an intuitive design with a fixed electrode array structure that helps physicians quickly and effectively identify ablation targets.3
Clinical evidence
The OPTRELL™ Mapping Catheter with Enhanced CONFIDENSE™ Module and SMART Index algorithm may help in generating reliable activation maps despite infrequent premature ventricular contractions (PVCs).3
97%
Accurate wave propagation direction5
In a pre-clinical study, 97.4% of the multipolar EGMs resembled the unipolar waveform, enabling the determination of the direction of wave propagation
100%
Complete blocks detected4
Local Conduction Vectors showing complex propagation patterns of block, slow conduction, or wavefront collision successfully detected 100% of gaps or complete blocks.
Pre-clinical swine study (n=10); 6 ablation gaps, 4 conduction blocks
2.5x
Reduction in far-field signal for multipolar EGMs5
Using the OPTRELLTM Mapping Catheter, a pre-clinical swine study demonstrated that there was a 2.5 times reduction in far-field signal for multipolar electrograms (EGMs).
This method may produce more accurate voltage and activation maps, particularly in complex substrate like scar and border zones.5
Features & benefits

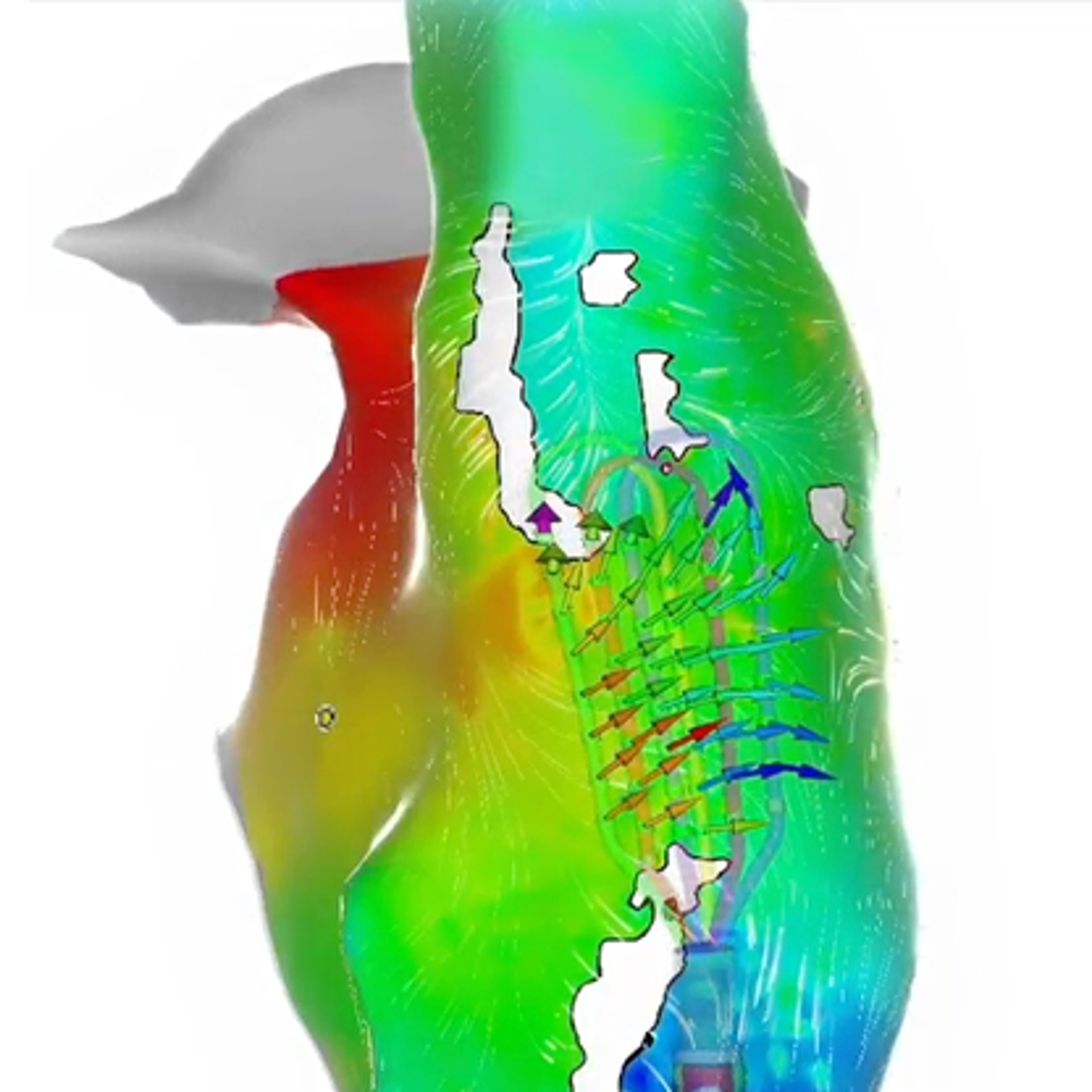

Intelligent insights
OPTRELL™ Mapping Catheter and CARTO™ 3 System combine to assist with detailed understanding of complex circuits and mechanisms.4 OPTRELL™ Mapping Catheter and Local Conduction Vectors enable confident detection of ablation lesion gaps.4
- Local Conduction Vectors display real-time information on conduction direction and propagation velocity6
- Thinner and longer vectors for areas
- of relatively fast or normal conduction6
- Thicker and shorter vectors for areas
- of relatively slow conduction6

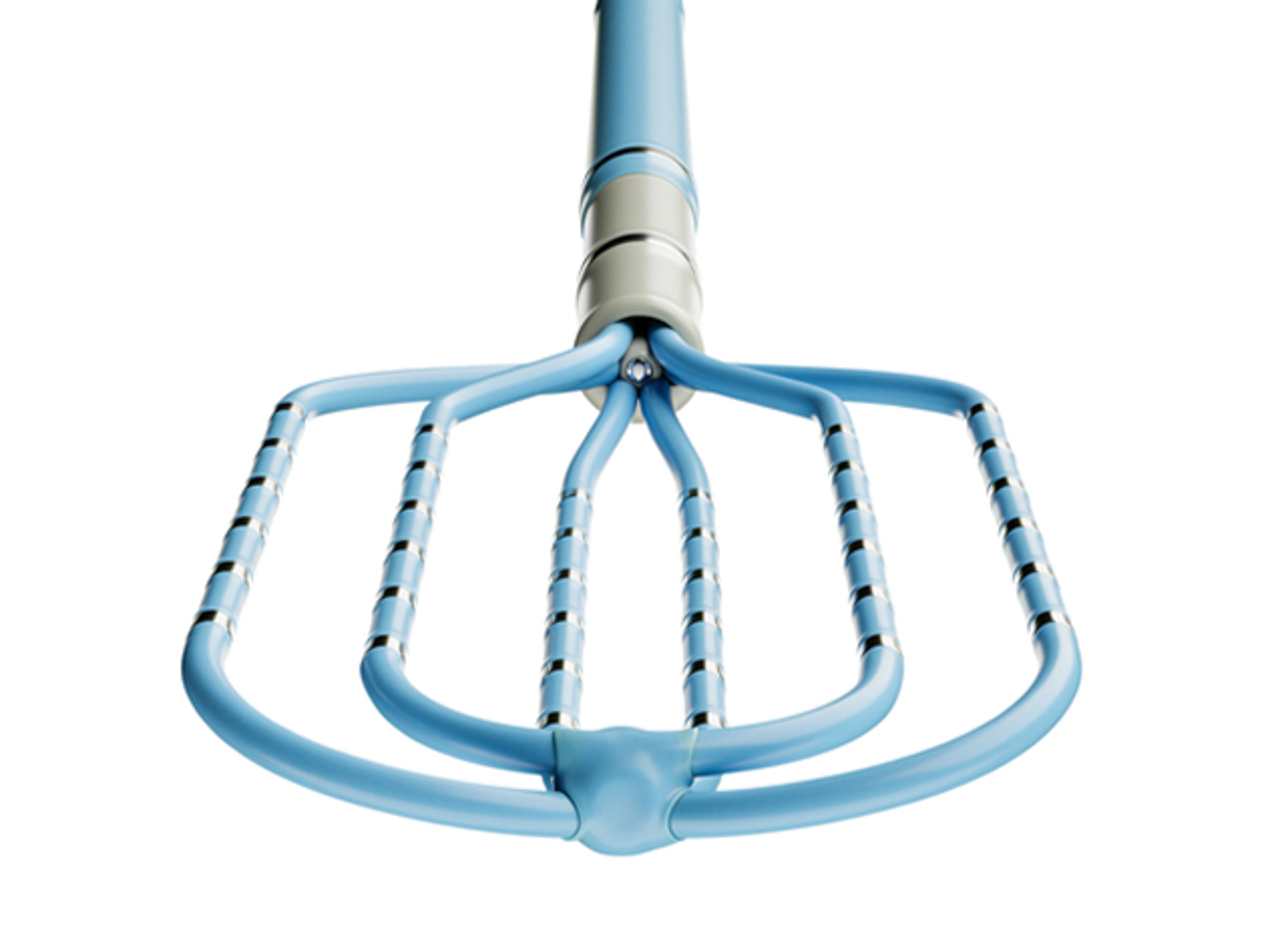

Fast, High Density Mapping
OPTRELL™ Mapping Catheter offers an intuitive design with a fixed electrode array structure that helps physicians quickly and effectively identify ablation targets.3
- TRUEref™ Technology reduces impact of far-field unipolar signals*7
- High density (36 electrodes)

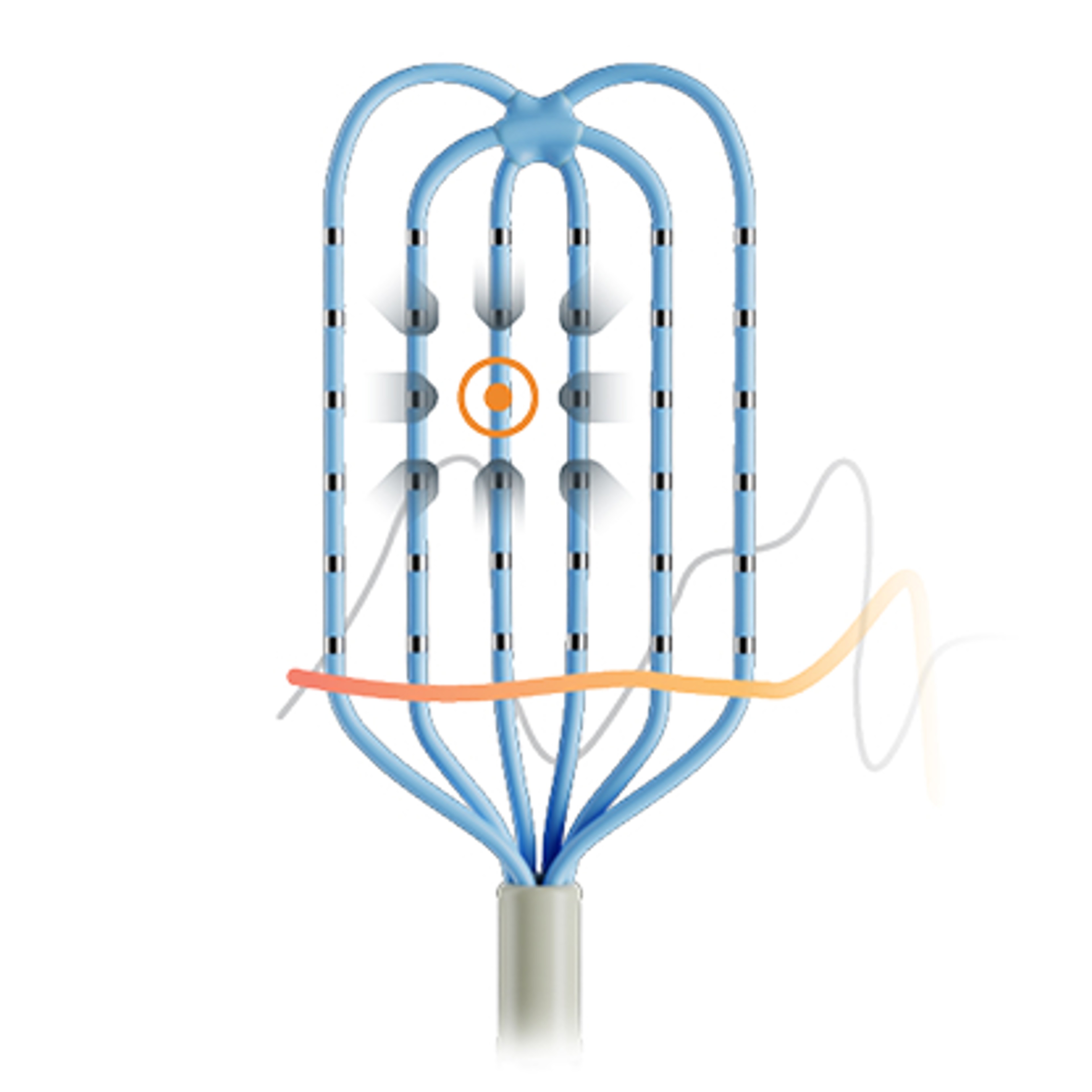

Multipolar Mapping
The Multipolar Mapping feature provides localized unipolar signals and is designed to reduce far field components that cause inconsistent voltage and Local Activation Time (LAT) measurements from unipolar signals, accentuating the local activation.**8
This feature is designed to work only with an OPTRELL™ Mapping Catheter.
An integrated system

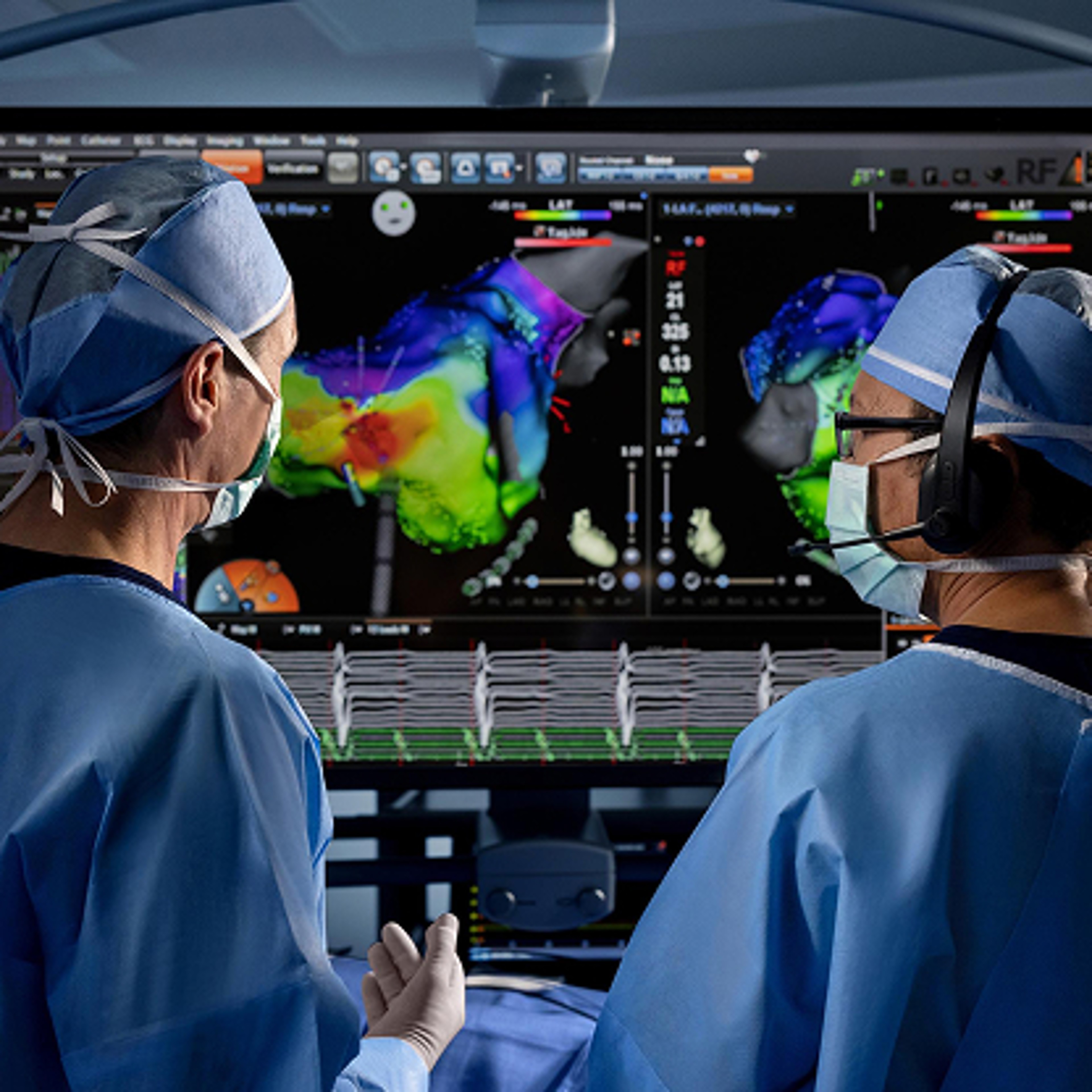

CARTO™ System Software

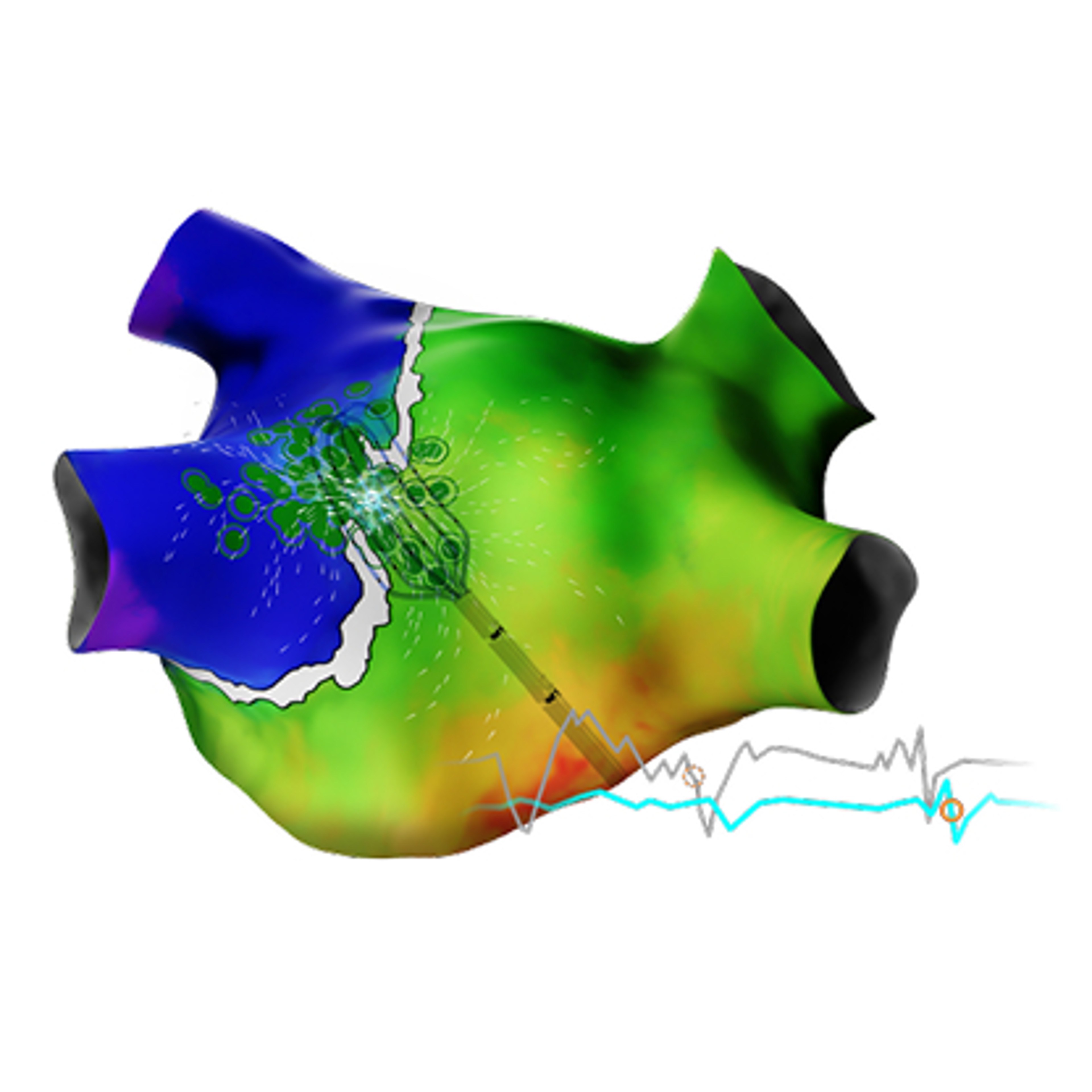

CARTO ELEVATE™ Module

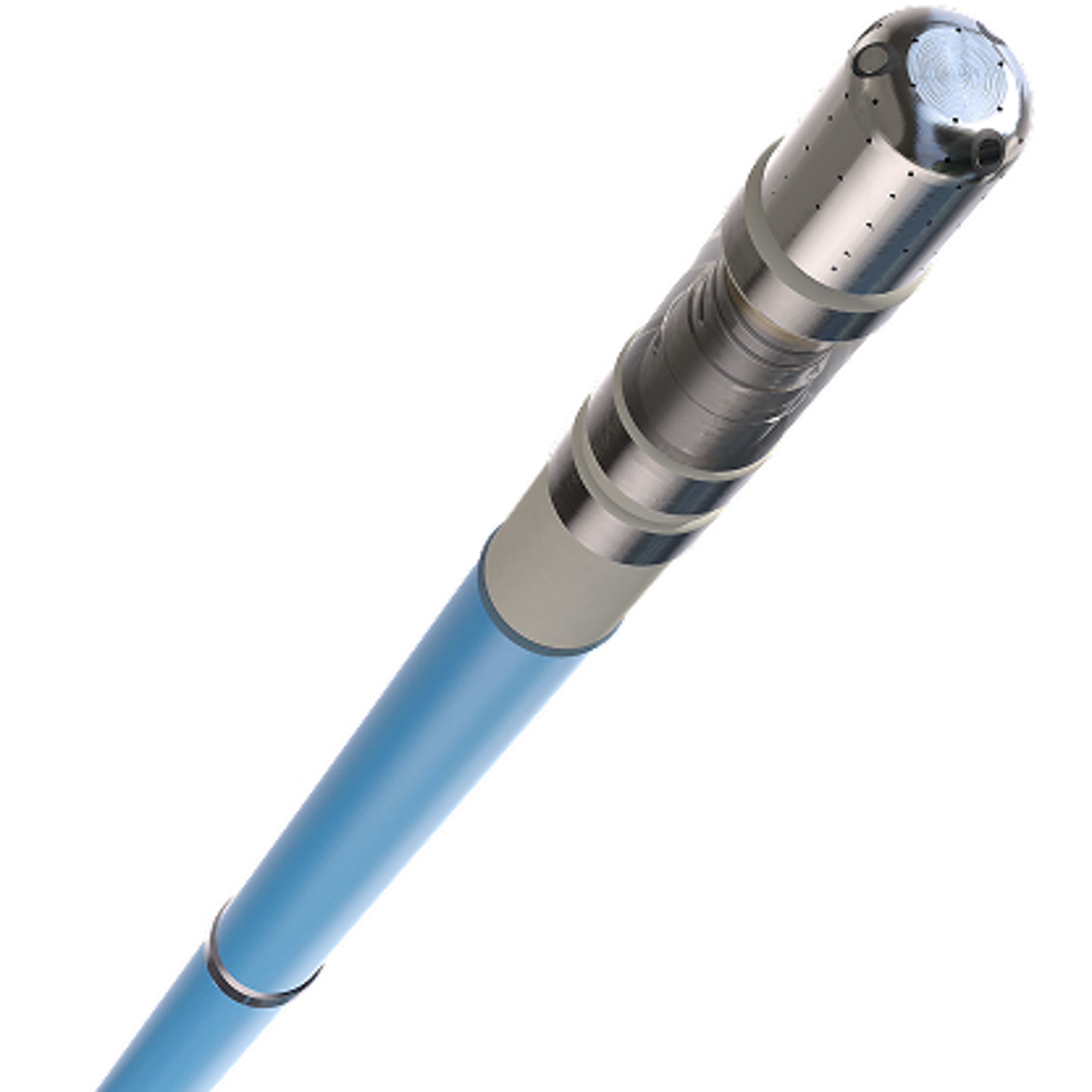

QDOT MICRO™ Catheter

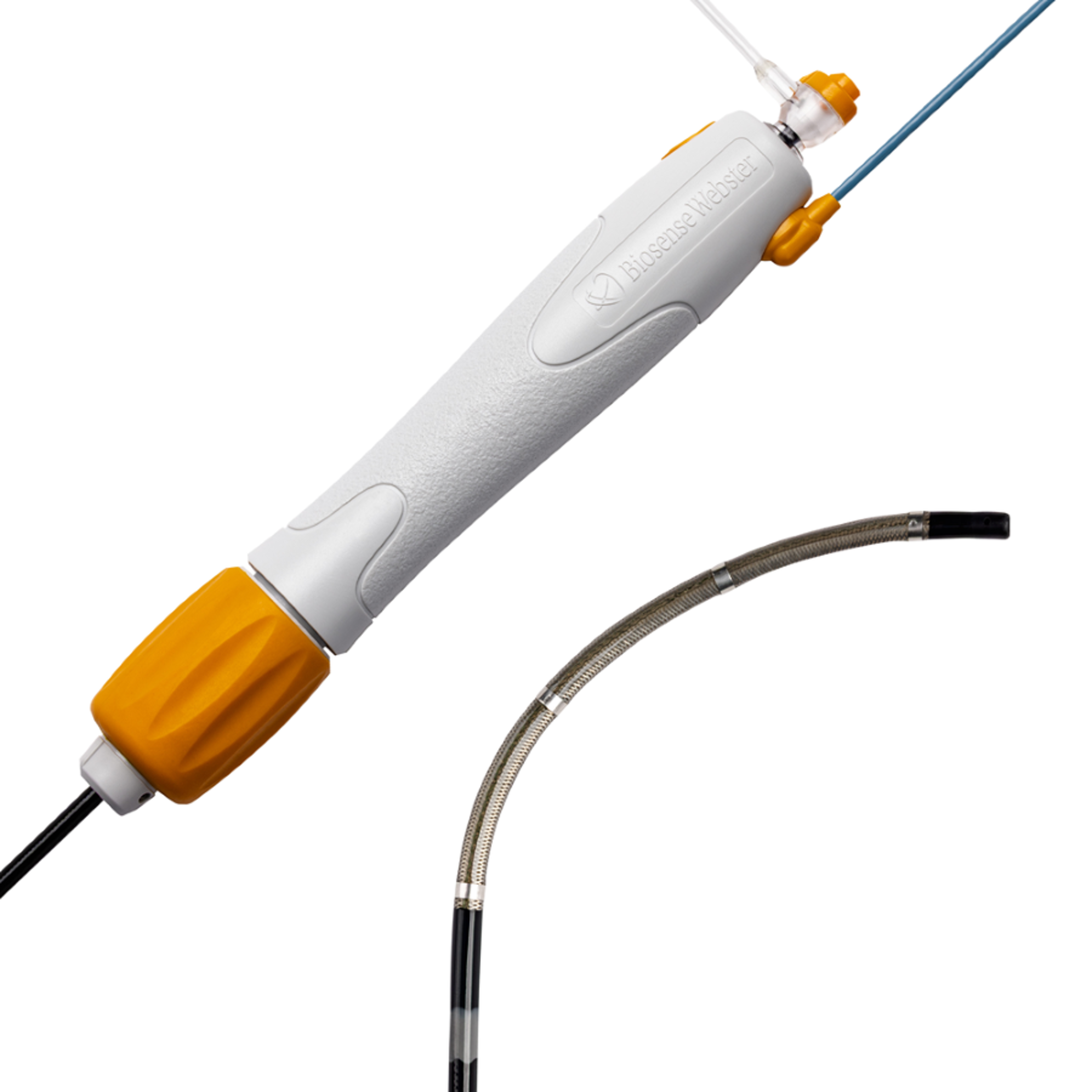

CARTO VIZIGO™ Bi-Directional Guiding Sheath
Dr. Paul Haas
MD, FACC, Electrophysiologist
Supporting documentation
Related products
OCTARAY™ Mapping Catheter with TRUEref™ Technology
The OCTARAY™ Mapping Catheter with TRUEref™ Technology is designed to improve signal quality, enhance mapping speed, and unleash the full potential of the CARTO™ 3 System.
PENTARAY™ NAV ECO High Density Mapping Catheter
The PENTARAY™ NAV ECO High-Density Mapping Catheter is designed to facilitate electrophysiological mapping of the heart with the CARTO™ 3 System. This deflectable catheter consists of multiple 3 F spines on its distal tip, each spine having multiple platinum electrodes that are used for stimulation and recording.
DECANAV™ Mapping Catheter
The DECANAV™ Catheter has been designed to be used with the CARTO™ 3 System to facilitate electrophysiological mapping of the heart.
The catheter has a single proximal electrode that can be used for unipolar recording signals. The catheter has a high-torque shaft with a deflectable tip section containing an array of platinum/iridium electrodes that can be used for stimulation and recording of cardiac electrical signals.
References
*Compared to Wilson’s Central Terminal (WCT). Based on a benchtop study (n=3).
**Each POD test includes a sample size of at least N = 1000 points. Data collected from pre-acquired OPTRELL studies, for both atrial and ventricular mapping.
- OPTRELL™ Mapping Catheter IFU M-5276-1121A
- CARTO 3 System Instructions for Use, Software Version 8.1. UG-5400-008H (00A)
- OPTIMUM Study, Clinical Evaluation of Arrhythmia Mapping with the Multi-Electrode OPTRELL™ Mapping Catheter. Protocol # BWI_2019_02. 28 Jan 2022.
- Yavin H et al. Propagation Vectors Facilitate Differentiation Between Conduction Block, Slow Conduction, and Wavefront Collision. Circ Arrhythm Electrophysiology. 2021 Aug;14(8):e010081.
- Anter, E., et al. (2024). Multipolar Electrograms: A New Configuration That Increases the Measurement Accuracy of Intracardiac Signals. JACC: Clinical Electrophysiology,10(7), Part 2, 1521-1533
- OPTRELL™ 48 Catheter Support. Instructions for Use and Release Notes. REP16038 (1.1).
- Engineering Report for Evaluation of TRUEref™ Technology for Far-Field Signal Reduction, TR-0028829
- REP15105 - CARTO 3 V8 Multipolar POD Report
