PENTARAY™ NAV ECO High Density Mapping Catheter
The PENTARAY™ NAV ECO High-Density Mapping Catheter is designed to facilitate electrophysiological mapping of the heart with the CARTO™ 3 System. This deflectable catheter consists of multiple 3 F spines on its distal tip, each spine having multiple platinum electrodes that are used for stimulation and recording.
Related products
OCTARAY™ Mapping Catheter with TRUEref™ Technology
The OCTARAY™ Mapping Catheter with TRUEref™ Technology is designed to improve signal quality, enhance mapping speed, and unleash the full potential of the CARTO™ 3 System.
OPTRELL™ Mapping Catheter
To aid in the most complex cases, the OPTRELL™ Mapping Catheter’s intuitive design and fixed electrode array work with the CARTO™ 3 System to deliver intelligent insights and high-resolution directional mapping.

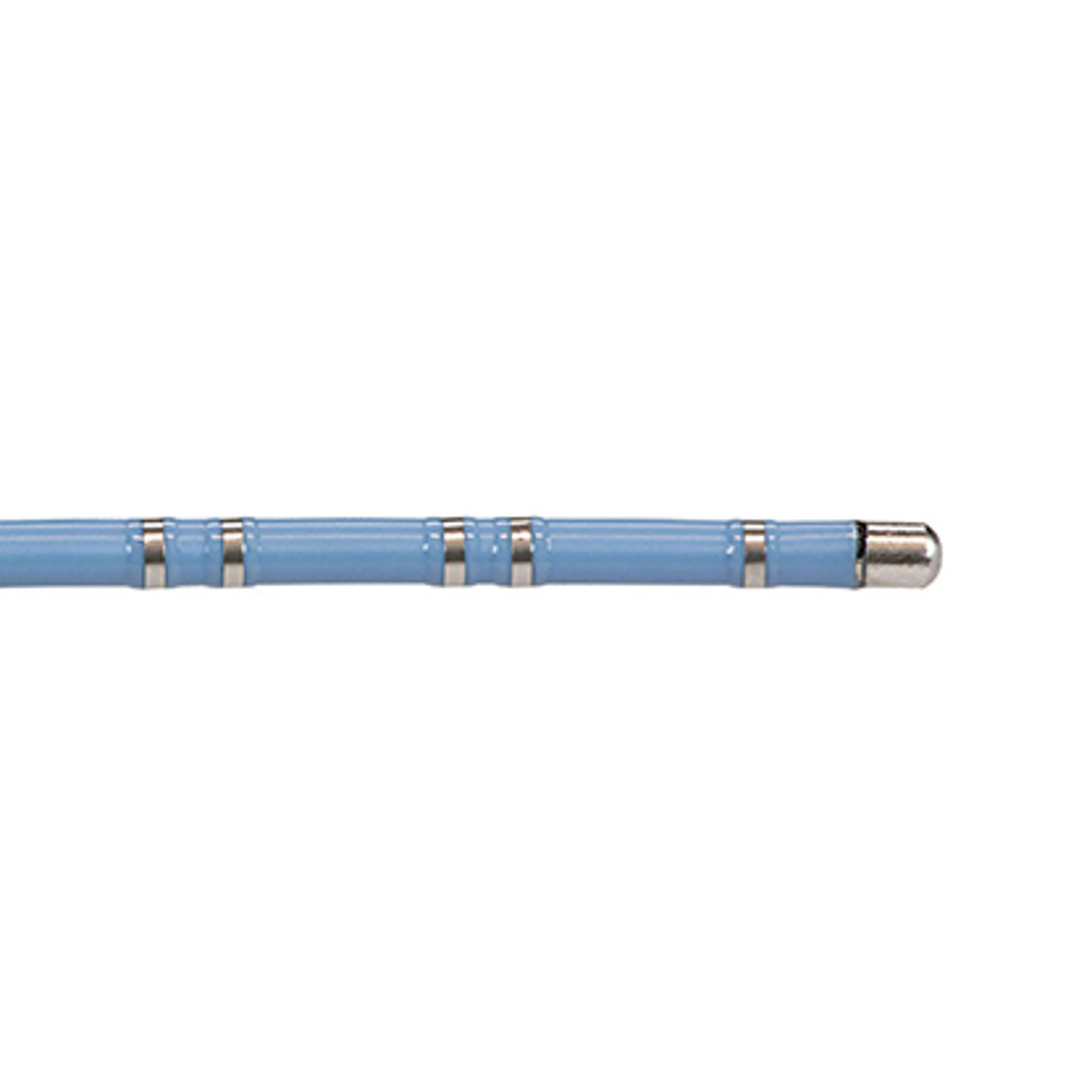

DECANAV™ Mapping Catheter
The DECANAV™ Catheter has been designed to be used with the CARTO™ 3 System to facilitate electrophysiological mapping of the heart.
The catheter has a single proximal electrode that can be used for unipolar recording signals. The catheter has a high-torque shaft with a deflectable tip section containing an array of platinum/iridium electrodes that can be used for stimulation and recording of cardiac electrical signals.
.png?width=3840&quality=90&format=webp)
CARTO PRIME™ Module
CARTO™ 3 System and the CARTO PRIME™ Module offers advancement in 3D mapping technology. From signals to diagnosis, across a wide range of electrophysiology procedures, we are re-framing the future of electrophysiology.
References
Always verify catheter tip location using fluoroscopy or IC signals and consult the CARTO™ 3 System User Guide regarding recommendations for fluoroscopy use.
Canpolat, U. et al (2020). State of Fluoroless Procedures in Cardiac Electrophysiology Practice. J Innov Cardiac Rhythm Management. 11(3), 4018–4029.
Sommer, P. et al (2018) Safety profile of near-zero fluoroscopy atrial fibrillation ablation with non-fluoroscopic catheter visualization: experience from 1000 consecutive procedures, EP Europace, Volume 20, Issue 12, Pages 1952–1958.
DO NOT use PENTARAY™ NAV ECO High Density Mapping Catheters, OCTARAY™ or OPTRELL™ Mapping Catheters with TRUEref™ Technology in patients with prosthetic valves.
